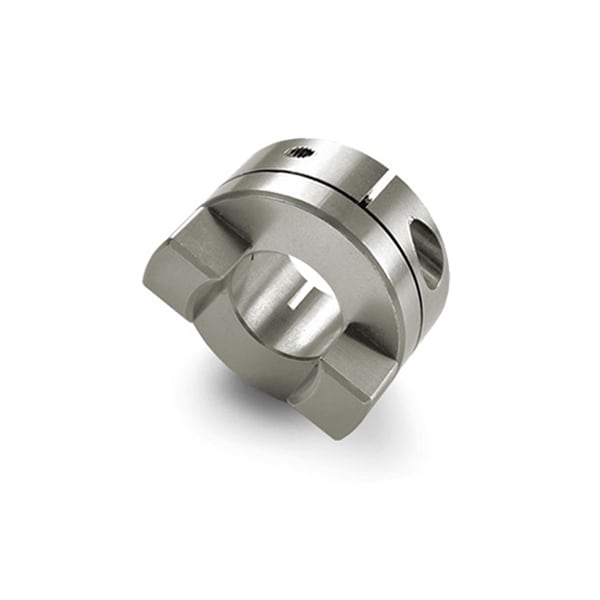

Clamp Oldham Coupling Hub, Bore 7mm, OD 19.1mm, Stainless Steel
Mfr # MOCT19-7-SS
Zoro # G3386558
product price:Â $66.85
/eaKey Features
Bore Dia.
7 mm
Max. RPM
4500 RPM
Outside Dia.
0.750 in (19.1 mm)
Overall Length
1.000 in (25.4 mm)
Finish
Bright
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MOCT19-7-SS
- Zoro #
- G3386558
- UPC #
- 634529238776
- Country of Origin
- United States
Dimensions
- Bore Dia.
- 7 mm
- Outside Dia.
- 0.750 in (19.1 mm)
- Overall Length
- 1.000 in (25.4 mm)
- Fastening Dimensions
- Metric
- Set Screw Size
- M2.5
- Hub Width
- 9.7 mm
Details
- Max. RPM
- 4500 RPM
- Finish
- Bright
- Material
- 303 Stainless Steel
- Weight
- 0.0417 lbs
- Screw Type
- Clamp
- Max. Temp. Range (F)
- Rating determined by disk
- Style
- Clamp
- Measurement Type
- Metric
- B1 Shaft Penetration
- 9.7 mm
- Recommended Shaft Tolerance
- +0.000 mm / -0.013 mm
- Screw Seating Torque
- 0.73 Nm
- Bore Tolerance
- +0.03 mm / -0.00 mm
- Screw Material
- 18-8 300 Series Stainless Steel
- Screw Finish
- Bright
- Number of Screws
- 1 ea
Description
Ruland oldham couplings are zero-backlash and designed for use in applications with high parallel misalignment (up to 10% of the OD). This clamp style hub is a component in a three piece design which mates two stainless steel hubs to a disk insert. It has a 7mm bore, 19.1mm OD, and 9.7mm length. The multiple piece construction allows for a highly customizable coupling that easily combines clamp or set screw hubs with inch, metric, keyed, and keyless bores. Disks are available in three materials allowing the user to tailor coupling performance to system requirements. Stainless steel hubs can be used in high corrosion, high temperature, and cleanroom environments when combined with a PEEK disk. The complete coupling has a balanced design and can accommodate speeds of up to 4,500 RPM. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. This oldham coupling hub is RoHS and REACH compliant.
