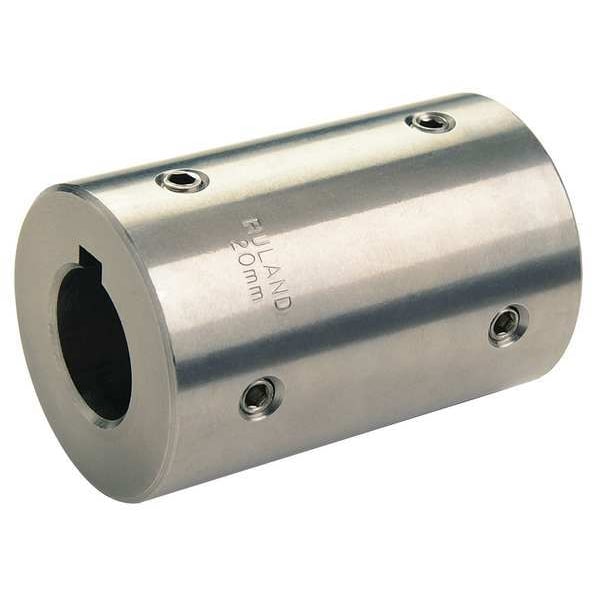

Rigid Shaft Coupling, Set Screw, 40mm
Mfr # MSCC-40-40-SS
Zoro # G8179376
product price: $662.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type - Couplings
1 Piece Set Screw
System of Measurement
Metric
Material - Couplings
303 Stainless Steel
Outside Dia.
77 mm
Overall Length
108 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MSCC-40-40-SS
Zoro #
G8179376
UPC #
634529107904
Country of Origin
United States
Dimensions
Bore Dia.
40 mm
Outside Dia.
77 mm
Overall Length
108 mm
Keyway Width (mm)
12
Keyway Width
12 mm
Screw Size (mm)
M10
Screw Size
M10
Clearance Diameter
77 mm
Screw Thread Size
M10
Maximum Bore Diameter
40 mm
Bore Diameter 1
40 mm
Keyway Width 1
12 mm
Minimum Bore Diameter
40 mm
Keyway Depth 1
3.5 mm
Keyway Depth 2
3.5 mm
Coupling Outside Diameter
77 mm
Keyway Width 2
12 mm
Bore Diameter 2
40 mm
Different Bore Sizes
No
Description
Rigid Shaft Coupling, Bore Diameter 1 40 mm, Bore Diameter 2 40 mm, Bore Type Round Keyed, Clearance Diameter 77 mm, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 77 mm, Different Bore Sizes No, Keyway Depth 1 3.5 mm, Keyway Depth 2 3.5 mm, Minimum Bore Diameter 40 mm, Keyway Width 1 12 mm, Keyway Width 2 12 mm, Maximum Bore Diameter 40 mm, Maximum Speed 4,000 RPM, Maximum Torque 400 N-m, Overall Length 108 mm, Shaft Locking Type Set Screw
