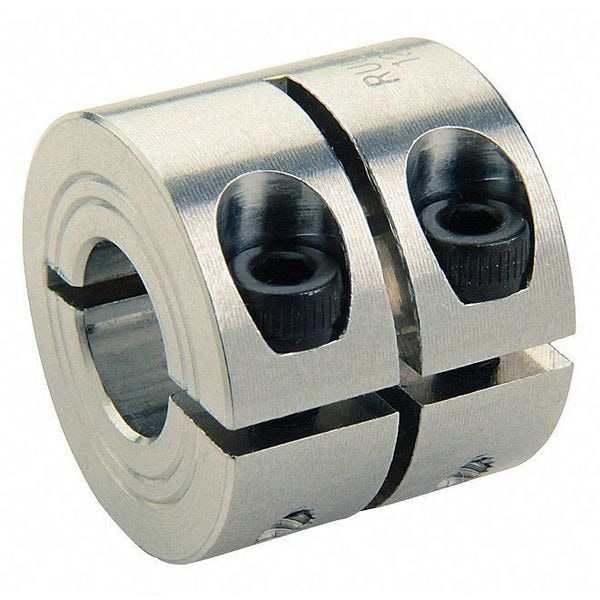

Shaft Collar, Clamp, 1Pc, 6mm, 2024 Aluminum

  • Mfr # MWCL-6-A

  • Zoro # G8165157

product price:  $20.69
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M3
Operating Temp. Range
-40 Degrees to 225 Degrees F
Screw Material
Alloy Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MWCL-6-A
Zoro #
G8165157
UPC #
634529126837
Country of Origin
United States

Dimensions

Screw Size
M3
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
6 mm
Collar Width
20 mm
Clearance Diameter
20.8 mm
Bore Diameter
6 mm
Collar Outside Diameter
16 mm
Screw Thread Size
M3

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 225 Degrees F
Screw Material
Alloy Steel
Item
Shaft Collar
System of Measurement
Metric
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015, REACH Compliant, RoHS Compliant
Screw Seating Torque
2.1 N-m
Bore Tolerance
+0.050/+0.012 mm
Minimum Operating Temperature
-40 Degrees C
Collar Material Finish
Bright
Screw Material Finish
Black Oxide
Shaft Locking Type
Clamp-On
Bore Type
Round
Included Screws
(2) Hex Socket Cap Screw
Collar Material
2024 Aluminum
Collar Construction
1 Piece Clamp
Maximum Operating Temperature
107 Degrees C
Collar Material Grade
2024
Shaft Tolerance
+0.000/-0.013 mm
Screw Location from Center
5.51 mm
Weight
0.0207 lbs
Number of Screws
2

Description

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 6 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 16 mm, Inside Height to Flat Not Applicable, Clearance Diameter 20.8 mm, Collar Width 19.6 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
