  11. Shaft Collar, Mountable, 20mm, Aluminum, Width: 15mm

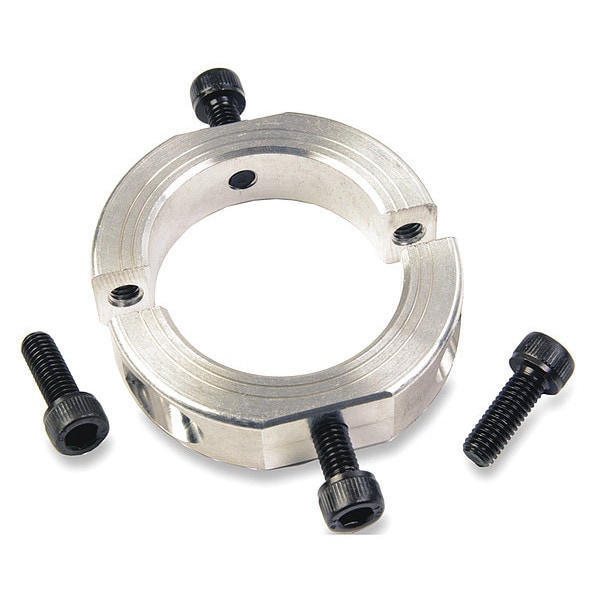

Ruland Shaft Collar, Mountable, 20mm, Aluminum, Width: 15mm OF-MSP-20-A - main

Shaft Collar, Mountable, 20mm, Aluminum, Width: 15mm

  • Mfr # OF-MSP-20-A

  • Zoro # G7102757

product price: $23.99
/ea

Key Features

Bore Dia.
20 mm
Material
Aluminum
Number of Pieces
2
Collar Style
Clamp
Outside Dia.
40 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OF-MSP-20-A
Zoro #
G7102757
UPC #
634529221129
Country of Origin
United States

Dimensions

Bore Dia.
20 mm
Outside Dia.
40 mm
Dimension Type
Metric
Width
15 mm
Screw Size
M6 x 16
Clearance Dia.
47.4 mm
Width Tolerance
+0.076 mm / -0.254 mm

Details

Material
Aluminum
Number of Pieces
2
Collar Style
Clamp
Operating Temp. Range
-40°F to 225°F (-40°C to 107°C)
Screw Material
Alloy Steel
Item
Shaft Collar,Mountable,20mm,Aluminum
Type
Two-Piece
Distance Across Flats
36 mm
Screw Seating Torque
16 Nm
Flat to Bore (FB)
8 mm
Weight
0.0877 lbs
Style
Round
Bore Tolerance
+0.05 mm / +0.012 mm
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Screw Finish
Black Oxide
Threaded Mounting Hole
M6
Screw Location (R)
14.73 mm
Number of Screws
2 ea

Description

Shaft Collar,Mountable,20mm,Aluminum

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
