Shop RULAND

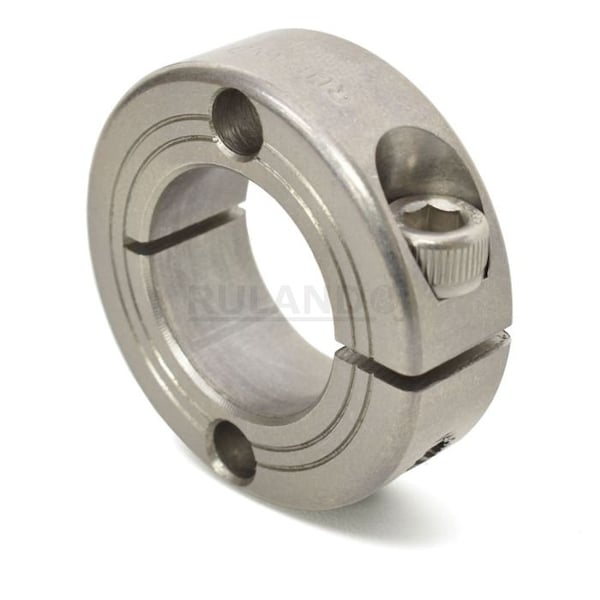

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-12E-SS

  • Zoro # G808678828

product price:  $26.15
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M6
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-12E-SS
Zoro #
G808678828
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M6
Width Tolerance
+0.076/-0.254 mm
Collar Width
15 mm
Screw Thread Size
M6
Clearance Diameter
47.4 mm
Bore Diameter
3/4 in
For Shaft Diameter
3/4 in
Mount Hole Size
6.35 mm
Collar Outside Diameter
40 mm

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Screw Seating Torque
9.6 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.0020/+0.0005 in
Item
Mountable Shaft Collar
System of Measurement
Metric with Inch Bore
Resistance Properties
Corrosion-Resistant
Screw Location from Center
14.73 mm
Collar Material Finish
Bright
Shaft Locking Type
Clamp-On
Collar Material
Stainless Steel
Bore Type
Round
Maximum Operating Temperature
176 Degrees C
Collar Material Grade
303
Component Mount Type
Face Mount Holes
Minimum Operating Temperature
-40 Degrees C
Screw Material Grade
18-8 300 Series
Shaft Tolerance
+0.0000/-0.0005 in
Included Screws
Clamp Screw
Screw Material Finish
Bright
Collar Construction
1-Piece
Number of Screws
1
Weight
0.226771 lbs

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 3/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Clearance Diameter 47.4 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
