Shop RULAND

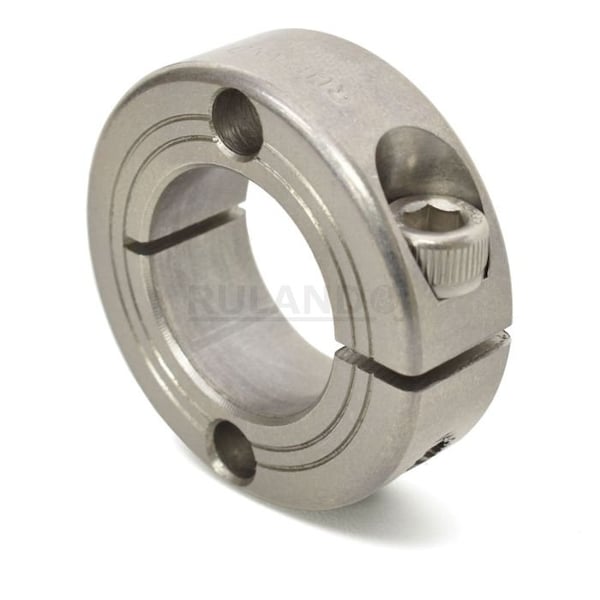

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-22E-SS

  • Zoro # G908673204

product price:
$
48.99
/ea

Key Features

Screw Material
Stainless Steel
System of Measurement
Metric with Inch Bore
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Width Tolerance
+0.076/-0.254 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FHD-MCL-22E-SS
Zoro #
G908673204
UPC #
-
Country of Origin
United States
Screw Material
Stainless Steel
System of Measurement
Metric with Inch Bore
Bore Tolerance
+0.0020/+0.0005 in
Item
Mountable Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
9.6 N-m
Collar Material Grade
303
Resistance Properties
Corrosion-Resistant
Minimum Operating Temperature
-40 Degrees C
Screw Material Finish
Bright
Bore Type
Round
Collar Material Finish
Bright
Component Mount Type
Face Mount Holes
Screw Material Grade
18-8 300 Series
Shaft Locking Type
Clamp-On
Shaft Tolerance
+0.0000/-0.0005 in
Maximum Operating Temperature
176 Degrees C
Included Screws
Clamp Screw
Collar Material
Stainless Steel
Collar Construction
1-Piece
Screw Location from Center
23.24 mm
Operating Temp. Range
-40 Degrees to 350 Degrees F
Weight
0.385191 lbs
Number of Screws
1
Number of Pieces
1
Collar Style
Clamp

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Clearance Diameter 62.4 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
