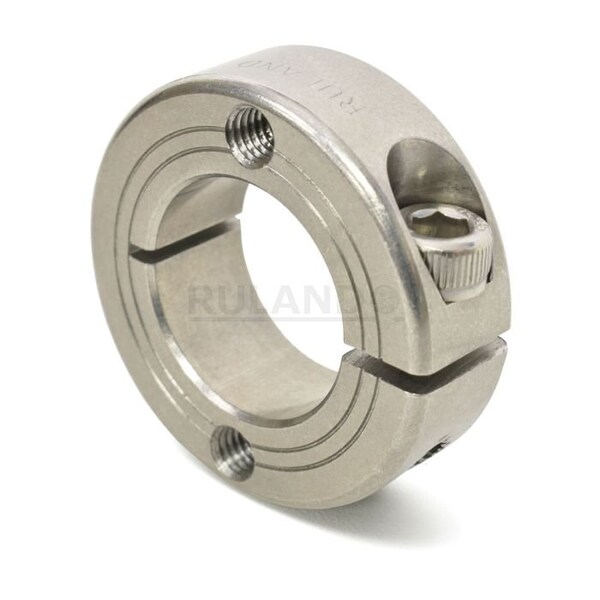

SHAFT COLLAR MOUNTABLE
Mfr # FHT-MCL-15-SS
Zoro # G008675009
product price:Â
$
22.39
/ea
Key Features
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
5.4 N-m
Width Tolerance
+0.076/-0.254 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FHT-MCL-15-SS
- Zoro #
- G008675009
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Bore Tolerance
- +0.050/+0.012 mm
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 5.4 N-m
- Item
- Mountable Shaft Collar
- System of Measurement
- Metric
- Shaft Tolerance
- +0.000/-0.013 mm
- Included Screws
- Clamp Screw
- Collar Construction
- 1-Piece
- Resistance Properties
- Corrosion-Resistant
- Collar Material Finish
- Bright
- Shaft Locking Type
- Clamp-On
- Collar Material Grade
- 303
- Collar Material
- Stainless Steel
- Screw Material Grade
- 18-8 300 Series
- Minimum Operating Temperature
- -40 Degrees C
- Component Mount Type
- Face Mount Holes
- Maximum Operating Temperature
- 176 Degrees C
- Bore Type
- Round
- Screw Material Finish
- Bright
- Screw Location from Center
- 12.5 mm
Description
Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 15 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Clearance Diameter 39.3 mm, Collar Width 13 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
