Shop RULAND

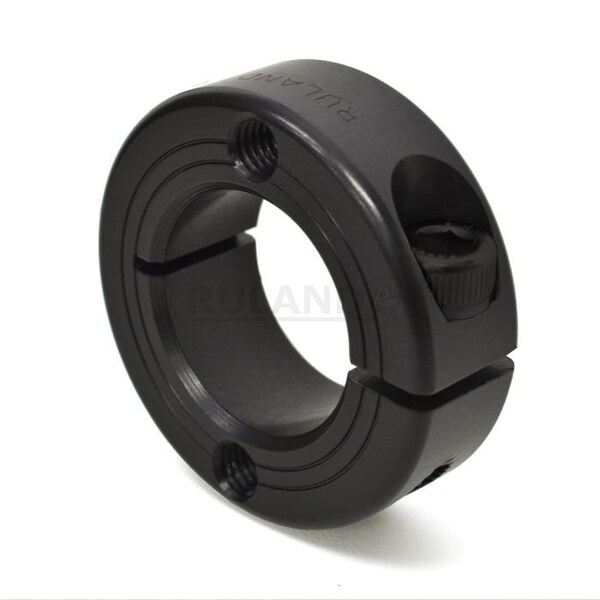

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-28-F

  • Zoro # G608675782

product price:  $15.49
/ea

Key Features

Bore Dia.
28 mm
Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
48 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-28-F
Zoro #
G608675782
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
28 mm
Outside Dia.
48 mm
Width
15 mm
Screw Size
M6 x 16
Clearance Dia.
54.7 mm
Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M6x16
Mount Hole Thread Size
M6
Screw Length
16 mm
Collar Width
15 mm
For Shaft Diameter
28 mm
Collar Outside Diameter
48 mm
Bore Diameter
28 mm
Clearance Diameter
54.7 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Screw Seating Torque
16 N-m
Item
Mountable Shaft Collar
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Corrosion-Resistant
Collar Material Grade
1215
Screw Material Finish
Black Oxide
Collar Material Finish
Black Oxide
Bore Type
Round
Component Mount Type
Face Mount Holes
Shaft Locking Type
Clamp-On
Collar Construction
1-Piece
Screw Location from Center
19 mm
Collar Material
Carbon Steel
Maximum Operating Temperature
176 Degrees C
Shaft Tolerance
+0.000/-0.013 mm
Included Screws
Clamp Screw
Threaded Mounting Hole
M6
Number of Screws
1
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Screw Location (R)
19.00 mm
Screw Finish
Black Oxide
Weight
0.281611 lbs
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 28 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 48 mm, Inside Height to Flat Not Applicable, Clearance Diameter 54.7 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
