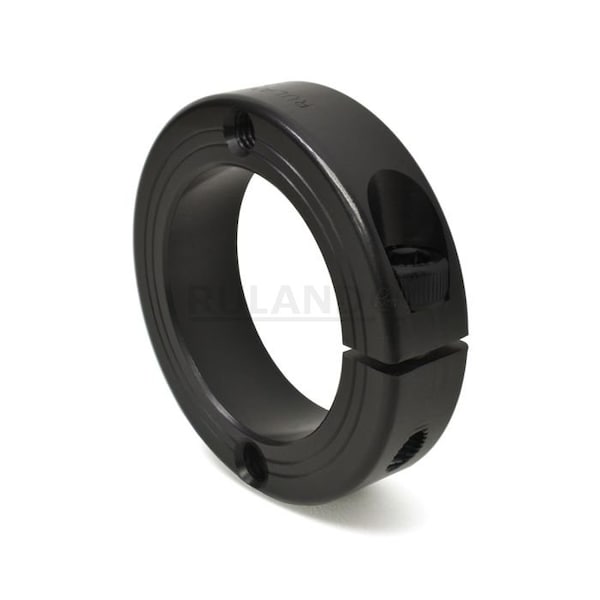

Ruland SHAFT COLLAR MOUNTABLE FHT-MCL-48-F - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-48-F

  • Zoro # G208675724

product price:  $40.29
/ea

Key Features

Bore Dia.
48 mm
Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
78 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-48-F
Zoro #
G208675724
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
48 mm
Outside Dia.
78 mm
Width
19 mm
Screw Size
M8 x 25
Clearance Dia.
84.7 mm
Width Tolerance
+0.076 mm / -0.254 mm
Collar Outside Diameter
78 mm
For Shaft Diameter
48 mm
Collar Width
19 mm
Screw Length
25 mm
Mount Hole Thread Size
M8
Clearance Diameter
84.7 mm
Screw Thread Size
M8x25
Bore Diameter
48 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Standards
ISO 9001:2015 Certified
Bore Tolerance
+0.050 mm / +0.012 mm
Screw Seating Torque
39 Nm
System of Measurement
Metric
Item
Mountable Shaft Collar
Collar Material Grade
1215
Maximum Operating Temperature
176 Degrees C
Collar Construction
1-Piece
Component Mount Type
Face Mount Holes
Bore Type
Round
Minimum Operating Temperature
-40 Degrees C
Included Screws
Clamp Screw
Collar Material
Carbon Steel
Collar Material Finish
Black Oxide
Screw Material Finish
Black Oxide
Shaft Tolerance
+0.000/-0.013 mm
Resistance Properties
Corrosion Resistant
Shaft Locking Type
Clamp On
Screw Location from Center
32 mm
Screw Location (R)
32.00 mm
Weight
0.894908 lbs
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Number of Screws
1
Screw Finish
Black Oxide
Threaded Mounting Hole
M8

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 48 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 78 mm, Inside Height to Flat Not Applicable, Clearance Diameter 84.7 mm, Collar Width 19 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
