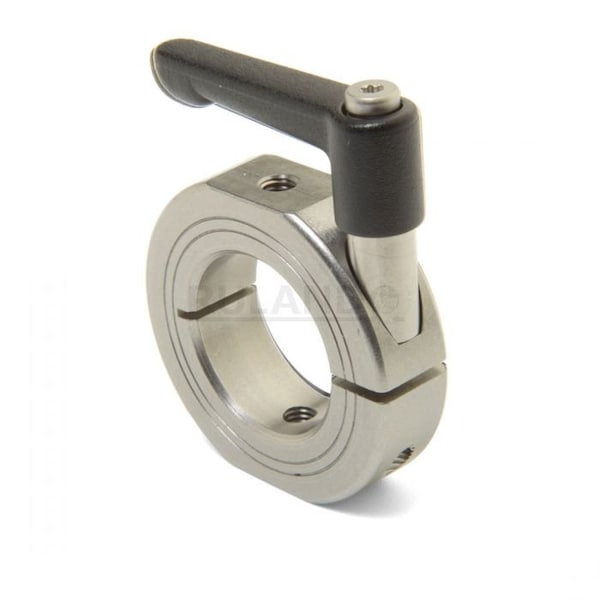

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-OF-MCL-24E-SS
Zoro # G308677307
product price: $122.99
/ea
Free Shipping & Returns
Key Features
Screw Material
Stainless Steel
Distance Across Flats
55 mm
Screw Seating Torque
9.6 N-m
System of Measurement
Metric with Inch Bore
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LV-OF-MCL-24E-SS
Zoro #
G308677307
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
Collar Outside Diameter
60 mm
Screw Thread Size
M6
Collar Width
15 mm
Mount Hole Thread Size
M6
For Shaft Diameter
1 1/2 in
Bore Diameter
1 1/2 in
Lever Length
45 mm
Lever Height
40.5 mm
Description
Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion Resistant
