Shop All Shaft Collars
Ruland

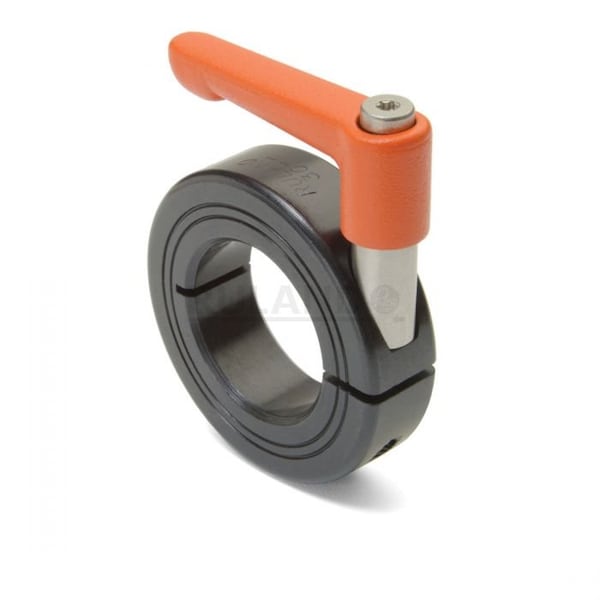

SHAFT COLLAR QUICK CLAMPING

product price: $38.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Screw Material Stainless Steel
  • Width Tolerance +0.076/-0.254 mm
  • System of Measurement Metric
  • Standards Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
  • Screw Seating Torque 16 N-m
See all product information

Product Information

Dimensions

Width Tolerance +0.076/-0.254 mm
Screw Thread Size M6
Lever Height 40.5 mm
For Shaft Diameter 30 mm
Lever Length 45 mm
Bore Diameter 30 mm
Collar Width 15 mm
Collar Outside Diameter 54 mm

Details

Screw Material Stainless Steel
System of Measurement Metric
Standards Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item Quick Clamping Shaft Collar
Screw Seating Torque 16 N-m
Bore Tolerance +0.050/+0.012 mm
Handle Color Orange
Collar Material Carbon Steel
Collar Material Finish Black Oxide
Screw Material Grade 303
Center to Lever Top 40.8 mm
Screw Location from Center 21.49 mm
Resistance Properties Corrosion Resistant
Handle Material Finish Powder Coated
Collar Construction 1-Piece
Lever Part Number LF45-CL-M6: 20-ZS-O
Collar Material Grade 1215
Shaft Locking Type Clamp On
Bore Type Round
Handle Material Zinc
Shaft Tolerance +0.000/-0.013 mm

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 30 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion Resistant, Screw Seating Torque 16 N-m
