Shop RULAND

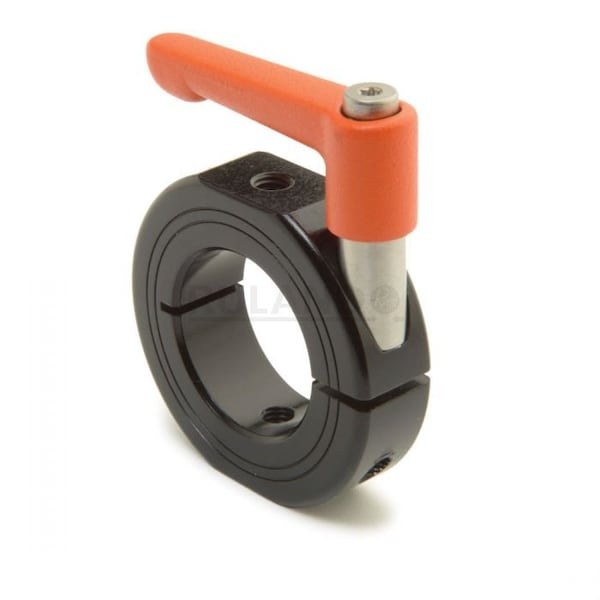

SHAFT COLLAR QUICK CLAMPING

  • Mfr # LVO-OF-MCL-16-AN

  • Zoro # G608673696

product price:
$
56.79
/ea

Key Features

Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Size
M5
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LVO-OF-MCL-16-AN
Zoro #
G608673696
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Shaft Collar with Clamping Lever
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Standards
Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Distance Across Flats
30 mm
Screw Seating Torque
9.5 N-m
Item
Quick Clamping Shaft Collar
Collar Material Grade
2024
Collar Material
Aluminum
Component Mount Type
Outer Diameter Holes with Wrench Flats
Flat to Bore
7 mm
Shaft Locking Type
Clamp-On
Lever Part Number
LF30-CL-M5: 15-ZS-O
Handle Material Finish
Powder Coated
Bore Type
Round
Handle Color
Orange
Screw Location from Center
12.5 mm
Collar Material Finish
Anodized
Handle Material
Zinc
Shaft Tolerance
+0.000/-0.013 mm
Collar Construction
1-Piece
Center to Lever Top
35.2 mm
Resistance Properties
Corrosion-Resistant
Screw Material Grade
303
Weight
0.1166 lbs
Number of Screws
1

Description

Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.5 N-m
