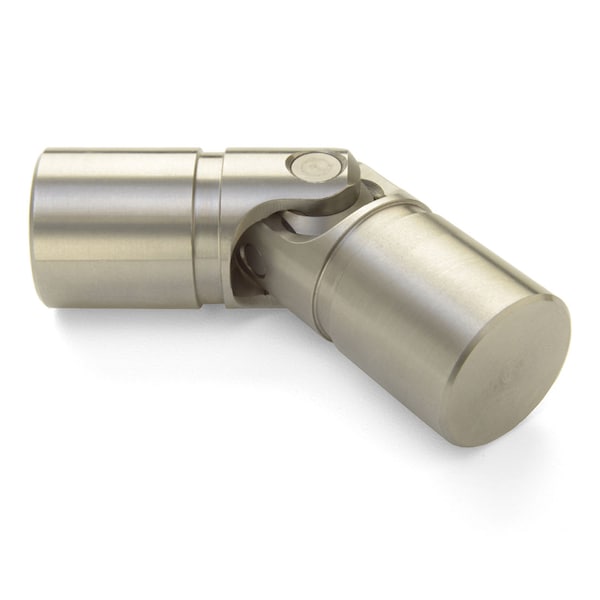

Single U-Joint Kit, Machinable, 0.995" (25.3 mm) OD, Stainless
Mfr # US16-XX-XX-SS
Zoro # G100674559
product price:
$
188.99
/ea
Free Shipping & Returns
Key Features
Type
Single, Friciton Bearing
Outside Dia.
0.995 in (25.3 mm)
Material
303 Stainless Steel
Lubrication
LUBRIPLATE No. 1200-2
SAE or Metric
Inch/Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- US16-XX-XX-SS
- Zoro #
- G100674559
- UPC #
- 63452928967
- Country of Origin
- United States
Dimensions
- Outside Dia.
- 0.995 in (25.3 mm)
- Length
- 3.380 in (85.9 mm)
- Hub Depth
- 1.190 in (30.2 mm)
- Yoke Length (LY)
- 1.688 in (42.9 mm)
Details
- Type
- Single, Friciton Bearing
- Material
- 303 Stainless Steel
- Lubrication
- LUBRIPLATE No. 1200-2
- SAE or Metric
- Inch/Metric
- Weight
- 0.51 lbs
- Max Round Bore With Key (Metric)
- 15mm Bore, 5mm Keyway
- Max Operating Angle
- 45°
- Max Round Bore (Inch)
- 0.5938 in
- Max Round Bore With Key (Inch)
- 9/16" Bore, 1/8" Keyway
- Max Square or Hex Bore (Inch)
- 0.5625 in
- Max. Torque
- 1575 in-lb (178.0 Nm)
- B2 Shaft Penetration
- 1.190 in (30.2 mm)
- B1 Shaft Penetration
- 1.190 in (30.2 mm)
- Matching Boot
- UBOOT16/25-NI-KIT
- Style
- Machinable Bore
- Max Round Bore (Metric)
- 15 mm
- Rated Torque
- 315 in-lb (35.6 Nm)
- Max Blind Bore (Inch)
- 0.8130 in
- Max Square or Hex Bore (Metric)
- 14 mm
- Max Blind Bore (Metric)
- 20 mm
Description
This Ruland machinable bore single friction bearing universal joint has a 0.995" outer diameter and 3.380" length. The design allows the user to put a bore size and/or geometry of their choice into each yoke or affix it directly to a surface by welding or some other method of their choice. It is best suited for applications requiring a short length and high torque (when compared to double universal joints of an equivalent OD). This single universal joint is made of a block, two pins, and two yokes. These components are manufactured to tight tolerances using proprietary processes that ensure smooth operation and high misalignment accommodation up to 45°, which is a significant improvement over commodity style single universal joints. It is made from stainless steel for corrosion resistance. The user can add a boot to protect the joint from unwanted contaminants and increase service life. This single friction bearing universal joint is manufactured in the USA.
