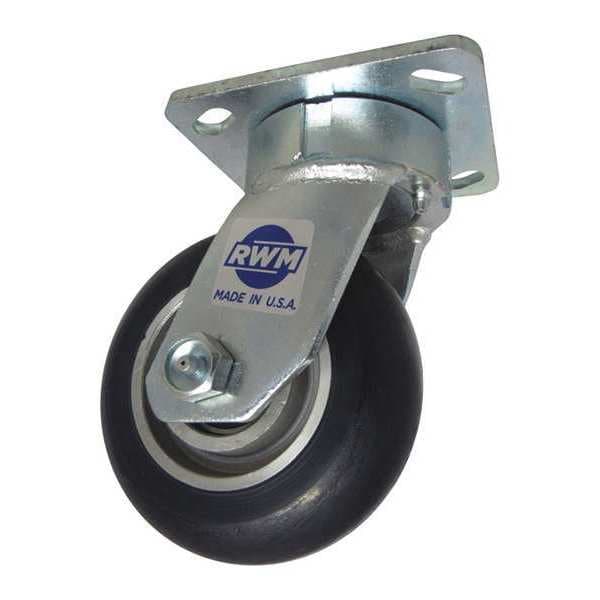

Rwm Kngpnlss Swvl Plate Caster, Poly, 1050lb. 65-UAB-0521-S-2.5 - main

Kngpnlss Swvl Plate Caster, Poly, 1050lb.

  • Mfr # 65-UAB-0521-S-2.5

  • Zoro # G7466956

product price:  $114.99
/ea
Free Shipping & Returns

Key Features

Extended Lead
Yes
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Temp. Range Available
Yes
Standards
ANSI ICWM, ISO 9001
Overall Height
6-1/2in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
65-UAB-0521-S-2.5
Zoro #
G7466956
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
6-1/2in
Wheel Dia.
5 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
6 1/2 in
Mounting Plate Thickness
1/4in

Details

Extended Lead
Yes
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Temp. Range Available
Yes
Standards
ANSI ICWM, ISO 9001
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Zinc Plated
Core Color
Silver
Caster Plate Hole Pattern
B
Includes
Complete Caster
Load Rating
1050 lb
Number of Wheels
1
Item
Plate Caster
Caster Sub-Type
Swivel
Caster Brake Included
No
Non-Marking
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Wheel Color
Blue
Replacement Wheel
Mfr. No. UAB-0521-08
Caster Frame Material
Steel
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Tread Shape
Donut
Wheel Core Material
Aluminum
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
1,050 lb
Compatible With
UAB-0521-08
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 1050 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
