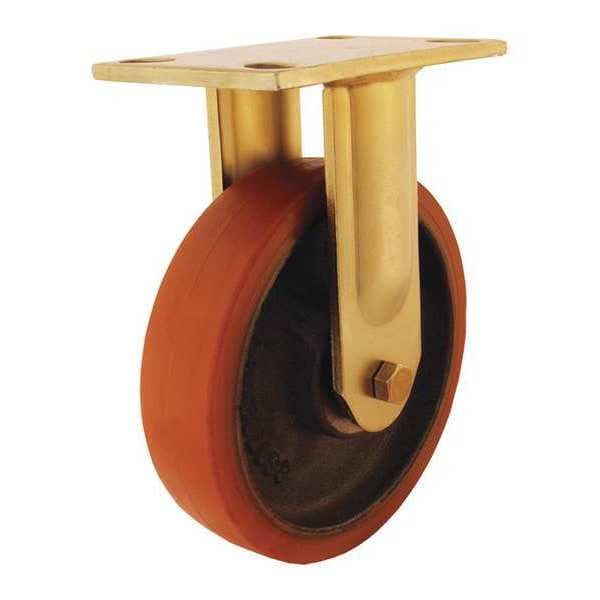

Plate Caster, Rigid, Poly, 8", 2000 lb.

Rwm Plate Caster, Rigid, Poly, 8", 2000 lb. 68-UIB-0820-R-INF
Hover or click to zoom Tap to zoom
Key Features
  • Item: Maintenance-Free Plate Caster
  • Caster Brake Included: No
  • Caster Load Rating Range: Medium-Duty
  • Caster Sub-Type: Rigid
  • Caster Product Group: Rigid Caster
  • Caster Wheel Shape: Standard
  • Load Rating: 2000 lb
  • Wheel Dia.: 8 in
See full product details
$171.09

Sign in for Free Shipping Over $50
Sign in for Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns
30-Day Returns
125 U.S.-Based Customer Service Agents
125 U.S.-Based Customer Service Agents

Rwm #68-UIB-0820-R-INF Specifications

  • Item: Maintenance-Free Plate Caster
  • Caster Brake Included: No
  • Caster Load Rating Range: Medium-Duty
  • Caster Sub-Type: Rigid
  • Caster Product Group: Rigid Caster
  • Caster Wheel Shape: Standard
  • Load Rating: 2000 lb
  • Wheel Dia.: 8 in
  • Caster Wheel/Tread Material: Polyurethane
  • Wheel Width: 2 in
  • Wheel/Tread Material: Polyurethane
  • Overall Height: 10-1/8"
  • Wheel/Tread Hardness Rating: Firm
  • Wheel Bearing Type: Precision Ball
  • Mounting Height: 10 1/8 in
  • Mounting Plate Size: 4 1/2 in x 6 1/2 in
  • Mounting Plate Bolt Hole Pattern: A
  • Inside Bolt Hole Spacing: 2-7/16 in x 4-15/16 in
  • Outside Bolt Hole Spacing: 3-3/8 in x 5-1/4 in
  • Mounting Bolt Dia.: 1/2 in
  • Number of Mounting Holes: 4
  • Caster Brake Type: No Brake Included
  • Swivel Lock Type: No Lock Included
  • Non-Marking: Yes
  • Number of Wheels: 1
  • Frame Finish: Zinc
  • Caster Frame Material: Steel
  • Wheel Core Material: Cast Iron
  • Core Color: Gray
  • Application: Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
  • Standards: ICWM, ISO 9001
  • Includes: Complete Caster
  • Replacement Wheel: Mfr. No. UIB-0820-08-INF
  • Plate Caster Bolt Hole Pattern: A
  • Caster Max. Temp.: 180 Degrees F
  • Caster Plate Hole Pattern: A
  • Frame Material: Steel
  • Caster Temp. Range: -40 Degrees to 180 Degrees F
  • Swivel Radius: 2 in
  • Caster Plate Size: 4-1/2" x 6-1/2"
  • Caster Wheel Bearings: Ball
  • Wheel Color: Blue
  • Extended Lead: No
  • Plate Thickness: 1/4"
  • Plate Size: 4-1/2" x 6-1/2"
  • Caster Plate Thickness: 1/4"
  • Caster Temp. Range Available: Yes
  • Thread Guards: No
  • Caster Min. Temp.: -40 Degrees F
  • Caster Core Material: Cast Iron
  • Durometer: 93 Shore A
  • Caster Swivel Lock Type: No Lock Included
  • Includes Thread Guards: No
  • Tread Shape: Standard
  • Load Rating Range: 1000 to 2999 lb
  • Wheel/Tread Hardness: 93 Shore A
  • Wheel/Tread Color: Blue
  • Country of Origin (subject to change): United States

Description

Rigid, Maintenance-Free Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
