  6. Rgd Cstr, Forged Steel, 5", 1500lb
Rwm Rgd Cstr, Forged Steel, 5", 1500lb 65-FSR-0520-R - main

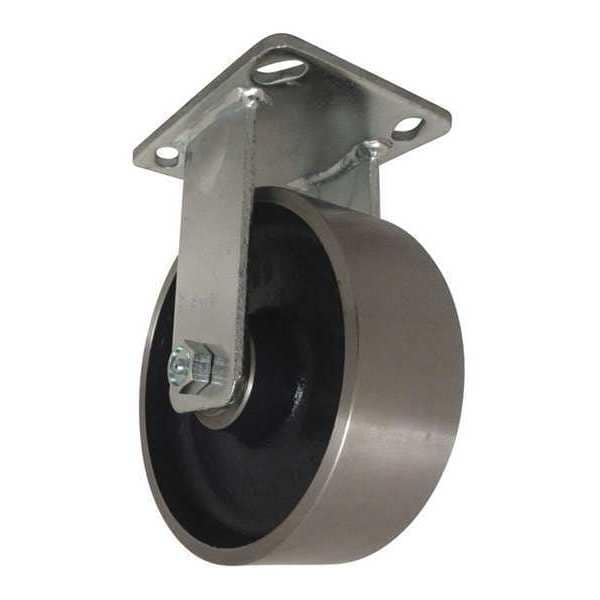

Rgd Cstr, Forged Steel, 5", 1500lb

  • Mfr # 65-FSR-0520-R

  • Zoro # G7466999

product price:  $94.39
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
65-FSR-0520-R
Zoro #
G7466999
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Load Rating
1500 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
179 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Blue
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Plate Hole Pattern
B
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. FSR-0520-08
Extended Lead
No
Thread Guards
No
Includes
Complete Caster
Caster Temp. Range Available
Yes
Caster Brake Included
No
Standards
ANSI ICWM, ISO 9001
Wheel Color
Silver
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Wheel Core Material
Steel
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Load Capacity - Maximum
1,500 lb
Compatible With
FSR-0520-08
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
350 Degrees F
Operating Temperature Range
-40 Degrees to 350 Degrees F

Description

Rigid, Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
