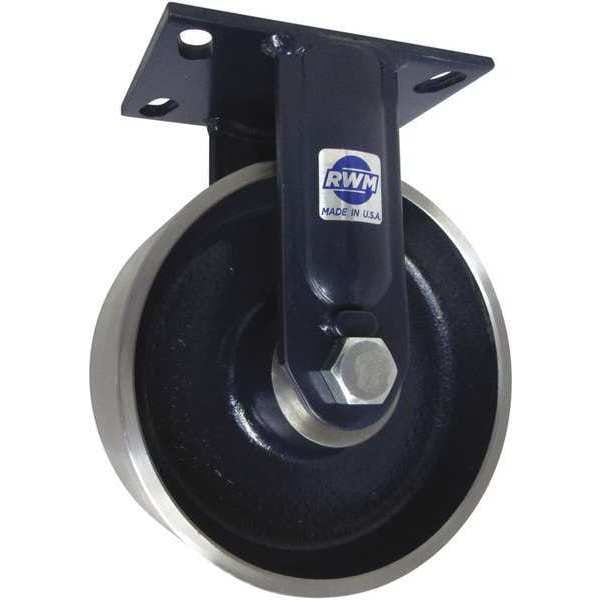

Rwm Rgd Cstr, Frged Steel, 8", 5500 lb 75-FSR-0830-R - main

Rgd Cstr, Frged Steel, 8", 5500 lb

  • Mfr # 75-FSR-0830-R

  • Zoro # G7466947

product price:  $350.99
/ea
Free Shipping & Returns

Key Features

Frame Finish
Powder Coated
Extended Lead
No
Number of Wheels
1
Wheel Color
Silver
Non-Marking
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
75-FSR-0830-R
Zoro #
G7466947
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Overall Height
10-1/8in
Mounting Height
10 1/8 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16in

Details

Frame Finish
Powder Coated
Extended Lead
No
Number of Wheels
1
Wheel Color
Silver
Non-Marking
Yes
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Included
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Thread Guards
No
Load Rating
5500 lb
Caster Frame Material
Steel
Item
Plate Caster
Includes
Complete Caster
Caster Plate Hole Pattern
A
Caster Temp. Range Available
Yes
Caster Sub-Type
Rigid
Core Color
Blue
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Standards
ANSI ICWM, ISO 9001
Replacement Wheel
Mfr. No. FSR-0830-12
Load Rating Range
3000 to 5999 lb
Wheel Core Material
Steel
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Includes Thread Guards
No
Caster Brake Type
No Brake
Swivel Raceway Type
Single Ball
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Extra Hard
Tread Shape
Standard
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Compatible With
FSR-0830-12
Load Capacity - Maximum
5,500 lb
Wheel Hardness Rating
179 BHN
Operating Temperature - Maximum
800 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature Range
-50 Degrees to 800 Degrees F

Description

Rigid, Plate Caster, Load Rating 5500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
