  11. Welding Cylinder Truck, 2 Cyl, 1680 lb.

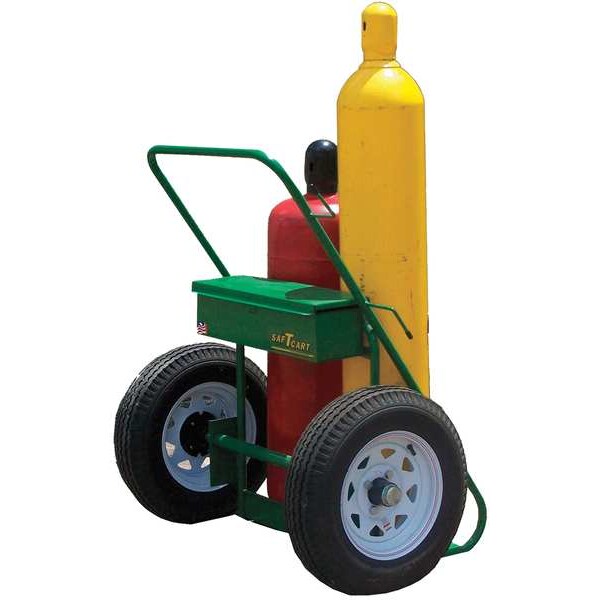

Saftcart Welding Cylinder Truck, 2 Cyl, 1680 lb. 504-30 - main

Welding Cylinder Truck, 2 Cyl, 1680 lb.

  • Mfr # 504-30

  • Zoro # G2127800

product price: $1,176.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
46 in
Overall Width
40 in
Material
Steel
Color
Green
Load Capacity
1,680 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
504-30
Zoro #
G2127800
UPC #
810649020938
Country of Origin
United States

Dimensions

Overall Height
46 in
Overall Width
40 in
Wheel Diameter
30 in
Base Plate Dimensions
13 x 24 in
Max. Tank Dia. Oxygen
9 1/2 in
Max. Tank Dia. Acetylene
12 1/2 in
Tool Tray Width
22 1/2 in
Overall Depth
12 1/2 in
Tool Tray Height
31 in
Wheel Width
6 in
Width
40"
Handle Height
46 in
Height
46 in
For Maximum Container Diameter
12 1/2 in
Overall Height - Cylinder Raised
62 in
Axle-Mounted Wheel Dia.
30 in
Overall Height - Cylinder Lowered
46 in
Deck Height
1/2 in
Overall HxWxD
46 in x 40 in x 12 1/2 in
Nose Plate Thickness
3/32 in
Nose Plate Depth
13 in
Axle-Mounted Wheel Width
5 1/4 in
Nose Plate Width
24 in
Securing Mechanism Height
26 in
For Maximum Cylinder Diameter
12 1/2 in
Nose Plate WxD
13 in x 24 in

Details

Material
Steel
Color
Green
Load Capacity
1,680 lb
Item
Welding Cylinder Hand Truck
Wheel Type
Auto Tire
Handle Type
Continuous Frame Flow-Back
Assembled
Yes
Wheel Bearings
Sealed
For Use With
Welding Cylinders and Torches
Includes
Steel Band to Cylinder, Lockable Toolbox
Hand Truck Handle Type
Continuous Frame Flow-Back
Cylinder Capacity
2
Finish
Powder Coated
Standards
29 CFR 1926.350(a)(10)
Brake Type
No Caster Brake
Includes Foot Assist
Without Foot Assist
Includes Stair Climber
Without Stair Climber
Includes Firewall
No
Axle-Mounted Wheel/Tread Material
Rubber
Hub Position
Offset
Cylinder Orientation
Side by Side
Nose Plate Material
Steel
Compatible with Product Type
Welding Cylinders and Torches
Caster/Wheel Mounting Location
2-Wheel
Features
A Lockable Toolbox
Axle-Mounted Wheel Type
Pneumatic
Frame Type
Rounded Back
Nose Plate Profile
Standard
Weight
117 lb
Frame Finish
Powder Coated
For Surface Type
Concrete, Grass, Wood
Securing Mechanism
Perma Clamp
Non-Marking Axle-Mounted Wheels
No
Includes Lever Pushoff
Without Lever Pushoff
Caster/Wheel Configuration
(2) Axle-Mounted
Includes Lift Ring
Without Lift Ring
Frame Material
Steel
Nose Plate Type
Solid Straight
Type
Standard

Description

2, Overall Height 46 in, Overall Width 40 in, Overall Depth 13 in, Load Capacity 1,680 lb, Securing Mechanism Perma Clamp, Caster/Wheel Configuration (2) Axle-Mounted, Axle-Mounted Wheel Type Pneumatic, Axle-Mounted Wheel/Tread Material Rubber, Axle-Mounted Wheel Dia. 30 in, Handle Type Flow-Back, Includes Firewall No, Includes Foot Assist Without Foot Assist, Includes Lever Pushoff Without Lever Pushoff, Includes Lift Ring Without Lift Ring, Frame Type Rounded Back, Frame Material Steel
