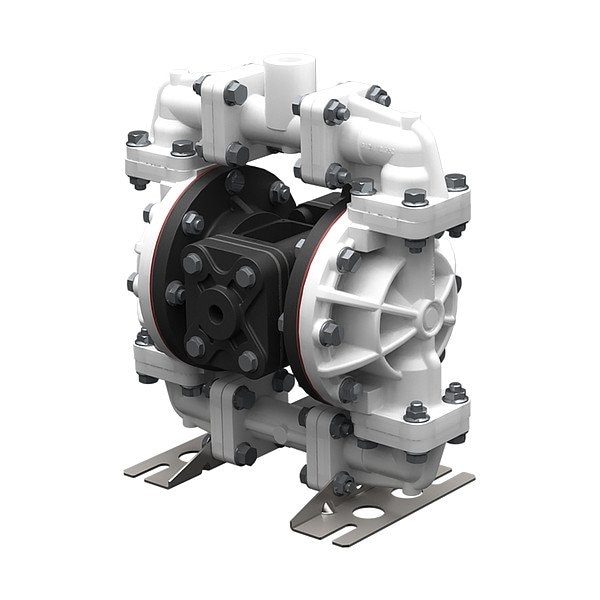

Air Operated Double Diaphragm Pump
Mfr # S05B2PBPPNI000.
Zoro # G811930616
product price: $1,001.99
/ea
Free Shipping & Returns
Key Features
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
S05B2PBPPNI000.
Zoro #
G811930616
UPC #
-
Country of Origin
United States
Dimensions
Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Solid Diameter (Maximum)
0.12 in
Overall Height
10.6 in
Overall Width
10.1 in
Media Intake Connection Size
1/4 in
Overall Length
7.1 in
Media Discharge Connection Size
1/2 in
Description
Air Operated Double Diaphragm Pump, Air Consumption (Maximum) 16 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material Polypropylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 14.3 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/4 in, Media Intake Connection Type FNPT
