Shop DAYTON

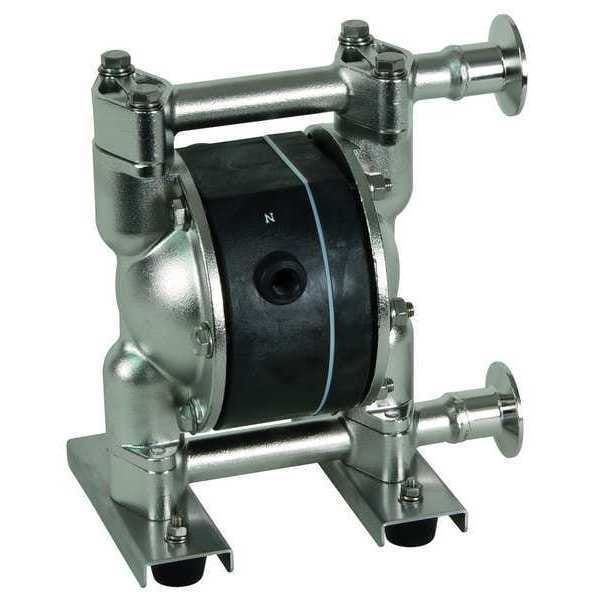

Double Diaphragm Pump, 316 Stainless Steel, Air Operated, Hytrel

  • Mfr # 22A602

  • Zoro # G5561491

product price:  $2,113.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
316 Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22A602
Zoro #
G5561491
UPC #
190735168486
Country of Origin
Japan

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Overall Length
5.8 in
Overall Width
8.4 in
Overall Height
9.8 in
Media Intake Connection Size
1 in
Solid Diameter (Maximum)
0.03 in
Media Discharge Connection Size
1 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
316 Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
21 scfm
Air Intake Connection Type
FNPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Hytrel
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
0 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Dry
5 ft
Standards
FDA Compliant
Agency Compliance
FDA Compliant
Includes
Ball Valve
Self-Priming Wet
28 ft
Pump Operation Type
Air
Inlet/Outlet
1 in
For Use With
Good for Applications Were FDA Compliant Materials are Required In The Process. Quick Teardown with Tri Clamp Connections and Polished Stainless Steel for Low Contamination and Wash Down.
Air Intake Pressure (Maximum)
100 psi
Media Intake Location
Bottom
Media Intake Connection Type
Tri-Clamp
For Use With Potable Systems
No
Flow Rate @ 60 psi
12 gpm
Flow Rate @ 70 psi
12.5 gpm
Wetted Housing Material
316 Stainless Steel
Media Discharge Location
Top
Flow Rate @ 30 psi
35 gpm
Priming
Self-Priming
Manifold Connection Type
Tri-Clamp
Media Discharge Connection Type
Tri-Clamp
Flow Rate @ 100 psi
13 gpm
Flow Rate (Maximum)
14 gpm
Feet of Head (Maximum)
231 ft
Mounting Hardware Material
Steel
Viscosity (Maximum)
15,000 cps
Duty Cycle
Continuous
Media Discharge Port Configuration
Side
Displacement Per Stroke
0.016 gal
Manifold Connection Standard
Tri-Clamp
Chemical Compatibility
Center Section Material
Aluminum
Includes Clean In Place Technology
No Clean In Place Included
Diaphragm Base Material
Hytrel
Diaphragm Reinforcement
Not Reinforced
Manifold Port Connection Type
Single Port
Includes Solenoid
No Solenoid Included
Media Intake Port Configuration
Side
Food Compatibility
Agave Syrup, Beer, Beet Sugar Liquids, Cane Juice, Caramel, Carbonated Water, Chocolate, Chocolate Syrup, Cider, Coconut Oil, Coffee, Condiments, Cooking Oil, Corn Oil, Corn Syrup, Cottonseed Oil, Cream (Candy), Distilled Spirits, Edible Oil, Egg, Fruit, Fruit Juice, Fruit Juice Concentrate, Gelatin, Glucose, High Fructose Corn Syrup, Honey, Icing, Jam, Jelly, Ketchup, Lard, Liquid Sugar, Mayonnaise, Molasses, Mustard, Olive Oil, Palm Oil, Peanut Butter, Peanut Oil, Rapeseed Oil, Rum, Salad Dressing, Sesame Seed Oil, Soy Sauce, Soybean Oil, Starch, Tomato Juice, Tomato Paste, Vegetable Juice, Vegetable Oil, Vinegar, Whey, Whiskey & Wines
Fluid Chamber Assembly Type
Bolted
Wetted Body Material
316 Stainless Steel
Material Conductivity
Conductive

Description

Double Diaphragm Pump, Air Consumption (Maximum) 21 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Hytrel, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 14 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type Tri-Clamp, Media Intake Location Bottom

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
