  9. Double Diaphragm Pump, Polypropylene, Air Operated, 53 GPM

This item is Discontinued.

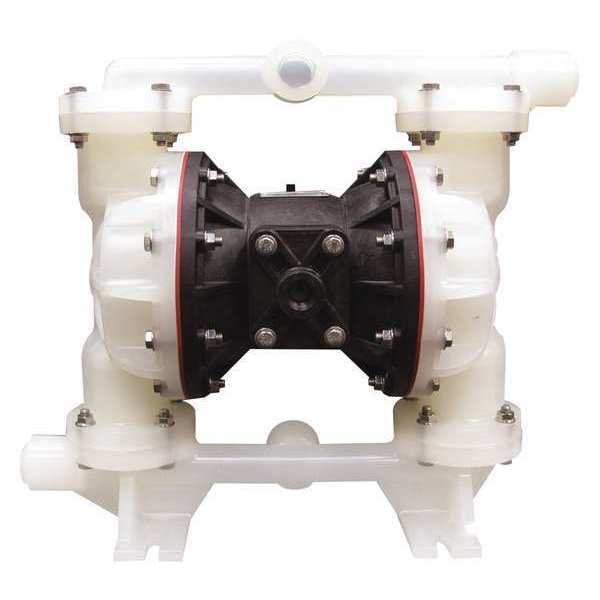

Sandpiper Double Diaphragm Pump, Polypropylene, Air Operated, 53 GPM S1FB3P2PPNI000.

Double Diaphragm Pump, Polypropylene, Air Operated, 53 GPM (Discontinued)

  • Mfr # S1FB3P2PPNI000.
  • Zoro # G8477585
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S1FB3P2PPNI000.
Zoro #
G8477585
UPC #
-
Country of Origin
United States

Dimensions

Inlet/Outlet Size
1 in
Air Inlet Size
1/2 in FNPT
Max. Dia. Solids
1/4 in
Width
17 in
Height
21 in
Manufacturers Warranty Length
1 yr
Length
11 5/8 in
Overall Length
11.6 in
Overall Height
21 in
Overall Width
17 in
Overall Size
11.6 in x 17 in x 21 in
Fluid Connection Size
1 in
Solid Diameter (Maximum)
0.25 in
Media Intake Size
1 in
Air Intake Connection Size
1/2 in
Media Discharge Connection Size
1 in
Media Discharge Size
1 in
Media Intake Connection Size
1 in

Details

Housing Material - Pumps
Polypropylene
Diaphragm Material - Pumps
PTFE - Santoprene(R) Backup
Max. Flow
53 gpm
Item - Air Operated Pumps
Double Diaphragm Pump
Pump Operation Type
Air
Max. Temp - Pumps
180 Degrees F
Connection Style
NPT
Agency Compliance
ATEX, CE, EAC
Valve Type
Ball
Check Seat Material
Polypropylene
Body Material
Polypropylene
Max. Operating Pressure
100 psi
Manifold Connection
Single Port
Operation Type
Air Operated
Item
Double Diaphragm Pump
Ball Material
PTFE
Diaphragm Material
PTFE
Max. Flow GPM
53 gpm
Self-Priming Dry
19 ft
Self-Priming Wet
15 ft
Max. Temp.
180 Degrees F
Standards
ATEX Certified, CE Certified, EAC
For Use With
Highly Corrosive Fluids, Intermittent/On-Demand, Low Abrasive Fluids, and Suspended Solids
Air Intake Connection Type
FNPT
Flow Rate @ 100 psi
56.8 gpm
For Use With Potable Systems
No
Chemical Compatibility
Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water
Flow Rate @ 80 psi
51.9 gpm
Housing Material
Polypropylene
Manifold Connection Type
NPT
Media Intake Type
NPT
Media Discharge Type
NPT
Media Discharge Location
Center, Top
Media Intake Connection Type
NPT
Feet of Head (Maximum)
231 ft
Fluid Intake Connection
1 in NPT
Media Discharge Connection Type
NPT
Pump Assembly Type
Bolt
Wetted Housing Material
Polypropylene
Port Location
Bottom Top, Center Center, Center Top
Priming
Self-Priming
Fluid Discharge Connection
1 in NPT
Valve Material
PTFE
Air Consumption (Maximum)
45 scfm
Valve Material
PTFE
Flow Rate (Maximum)
53 gpm
Non-Wetted Housing Material
Polypropylene
Flow Rate @ 60 psi
47.6 gpm
Fluid Connection Type
NPT
Air Inlet
1/2 in FNPT
Media Temperature (Maximum)
180 Degrees F
Operating Pressure (Maximum)
100 psi
Flow Rate @ 20 psi
30.8 gpm
Flow Rate @ 40 psi
42.1 gpm
Media Intake Location
Bottom, Center
Air Intake Pressure (Maximum)
100 psi

Description

Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type FNPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 53 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Center
