  13. Lever Lockset, Mechanical, Privacy, Grade 1

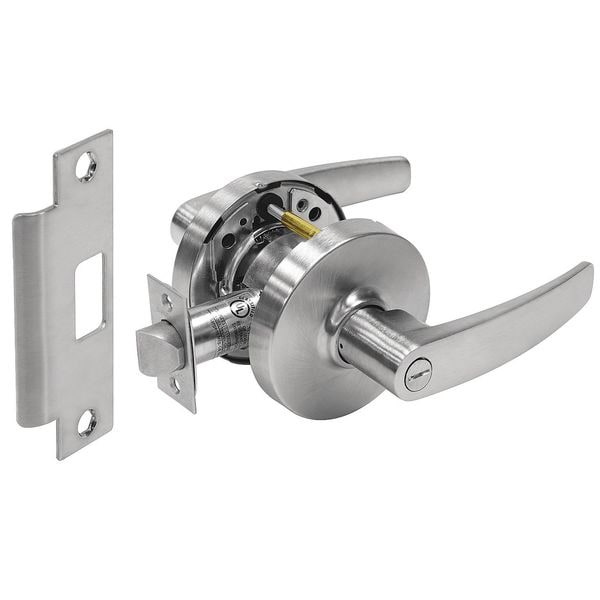

Sargent Lever Lockset, Mechanical, Privacy, Grade 1 10XU65 LB 26D - main

Lever Lockset, Mechanical, Privacy, Grade 1

  • Mfr # 10XU65 LB 26D

  • Zoro # G4579294

product price: $432.57
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10XU65 LB 26D
Zoro #
G4579294
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
For Door Thickness
1-3/4 to 2"
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
2 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Institutional
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
10 Line
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in
Style
10 Line B
Lockset Fire Rating
3 hr
Mortise / Cylindrical
Cylindrical
Lockset Handle Type
Lever
Lockset Finish
Satin Chrome
Key Type
Not Keyed
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL 437, UL and cUL Listed
ADA Compliant
Yes
Handle Material
Brass, Bronze, Cast Steel, Wrought
Strike Type
Curved Lip, T-Strike
Ligature Resistant
No
Mortise/Cylindrical
Cylindrical
Lockset Grade
1
Lockset Performance Strength
Heavy Duty
Number of Keys
2
For Use With
ANSI 115.2 (161 Modifed) Door Prep
Number of Pins
6; 7
Fire Rated
3 hr.
Keyway Type
Sargent LA
Keying
Keyed Different
Visual Indicator Message
No Message
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Material
Wrought and Cast Steel, Brass, Bronze
Case Material
Steel and Zinc
Type
Cylindrical
Function
Privacy
Fire Rating
3 hr
Includes Core
Core Not Included
Knob/Handle Material
Cast Zinc
Locking/Unlocking Access - Outside
Not Lockable
Hand Orientation
Non-Handed
Lockset Type
Mechanical
Application
Commercial, Government, Hospitals, Manufacturing Facilities, Office, Schools
Trim Plate Shape
Round
Lockset Style
10X Line
Locking/Unlocking Access - Inside
Push Button
Lockset Function ANSI Code
F76A
Ligature-Resistant
Not Ligature-Resistant
ANSI/BHMA Finish
Satin Chromium-Plated
ANSI Grade
1
Latch Bolt/Dead Bolt
Latch Bolt
Performance Grade
1

Description

Lever Lockset, Cylindrical, Institutional, 10 Line Series, B Style Style, Satin Chrome Finish, Function Privacy, Grade 1, Material Wrought and Cast Steel, Brass, Bronze, For Door Thickness 1-3/4 to 2 In., Backset 2-3/4 In., Front Size Dimension 2-1/4 x 1-1/8 In., Crossbore Size 2-1/8 In., ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Keying Different, Standards Certified ANSI A156.2 Series 4000 Grade 1, UL and CSA Listed, ADA, California Administrative Code Title 19 and 24
