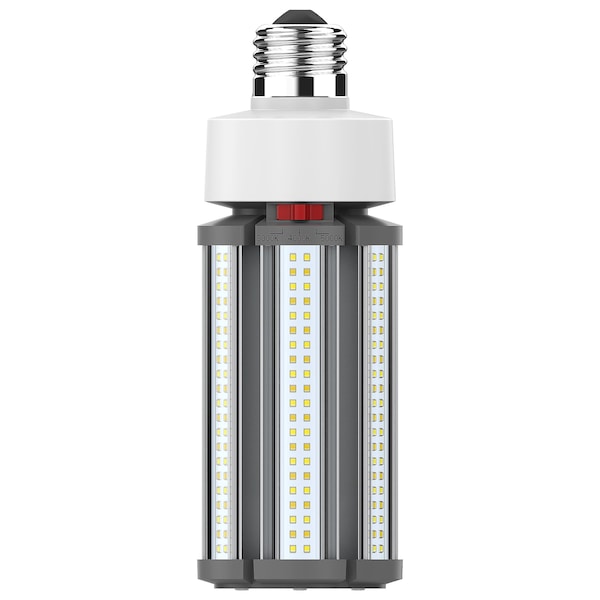

45W LED HID Bulb, CCT Select, Type B, Ballast Bypass, E26 Base, 277480V

Mfr # S23163
Zoro # G207676548

90.19

Key Features

Voltage

277V-480V

Bulb Base Type

Medium

Bulb Shape

Corncob

Max. Overall Bulb Length

8.91 in.

Watts

45W

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: S23163
Zoro #: G207676548
UPC #: 45923231636
Country of Origin: China

Dimensions

Max. Overall Bulb Length: 8.91 in.
Minimum Compartment Size: Length: 10.55 in. Width: 8.00 in. Height: 8.00 in.

Details

Voltage: 277V-480V
Bulb Base Type: Medium
Bulb Shape: Corncob
Watts: 45W
Item: Corncob
Material: Aluminum / Polycarbonate (PC)
Lumens: 5850L/6300L/6075L
Dimmable: Yes-Dimmable
Burning Position: Universal
Power Factor: 0.9
Dimmable Function: ONLY Dimmable Via Sensor Port
Lamp Filament: LED
Operating Temp: -30C (-22F) to +45C (+113F)
Safety Listing: cUL - Classified; cRUus - Recognized Component
Finish: White
Housing Color: Dark Gray
Rated For Enclosed Fixture: Yes
Location Rating: Damp
Technology: LED
Amps: 0.180A
Temperature (CCT): 3000K/4000K/5000K
Lamp Ballast Type A/B/C: Type B
Surge Protection: Built-in surge protection - 4KV
IP Rating: IP64
Enclosure Rating: Enclosed Rated Lamp
Indoor Outdoor: Indoor and Outdoor
Beam Spread: 300
Avg Rated Hours: 50000
Lens Material: Plastic
CRI: 80
HID Equiv: 200W
Lens Finish: Clear
Operating Frequency: 50/60 Hz
Color Temp: Warm to Cool White
Lamp Base: Medium

Description

Satco's S23163 45watt corncob bulb is the lamp of choice for largescale applications Illuminate gymnasiums, warehouses, or any other venue with high ceilings requiring superior light output This CCT selectable lamp delivers 50,000 hours of clean, energysaving light
