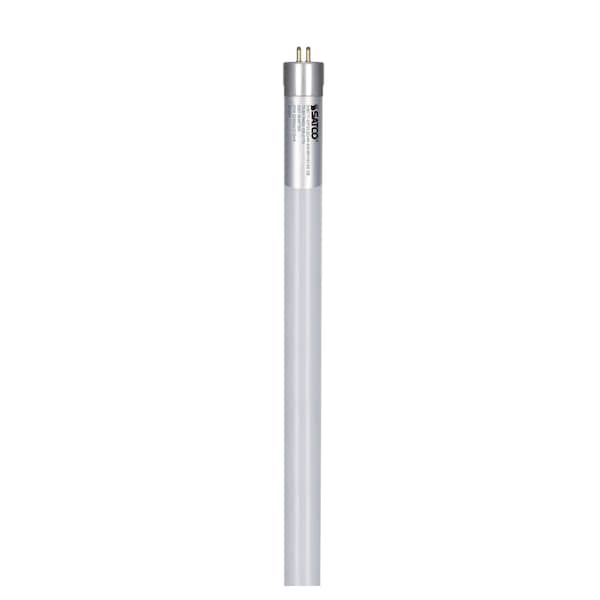

Satco Bulb, LED, 25W, T5, Miniature Bi Pin, 3500K, Non-Dim S39717 - main

Bulb, LED, 25W, T5, Miniature Bi Pin, 3500K, Non-Dim

  • Mfr # S39717

  • Zoro # G308435013

product price:  $13.99
/ea
Sold in multiples of 25 for $349.75

Key Features

Voltage
120-277V
Watts
25 W
Bulb Base Type
G5 Miniature Bi Pin
Bulb Shape
T5
Bulb Housing
Glass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S39717
Zoro #
G308435013
UPC #
45923397172
Country of Origin
China

Dimensions

Length
48 in
Bulb Dia.
0.83 in

Details

Voltage
120-277V
Watts
25 W
Bulb Base Type
G5 Miniature Bi Pin
Bulb Shape
T5
Bulb Housing
Glass
Color Temperature
3500K
Dimmable
No
Lumens
3200
Rated Life
50000 hr
Light Technology
LED
Wattage Equivalency
54W Fluorescent
Bulb Operating Temp. Range
-13 to 113°F
Bulb Beam Angle
240 Degrees
Energy Star Compliant
No
Light Color
Neutral White
Replaces
S29717
Shatter-Resistant
Yes
Type
Linear
For Enclosed Fixtures
Yes
Color Rendering Index
83
Bulb Finish
Frost
Standards
DLC Approved, FCC Compliant, NSF Approved, cULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
IP Rating
IP20
Lamp Filament
LED
Housing Color
White
Total Harmonic Distortion
0.2
Ballast Bypass/Direct
Bypass
Lamp End Type
Single Ended, Double Ended
Lens Material
Glass
Power Factor
0.9
Operating Frequency
50/60 Hz
Color Selectable
No
Bulb Minimum Starting Temperature
-13 degrees fahrenheit
Incandescent Wattage Equivalency
100 watts
Maximum Operating Temperature
113 degrees fahrenheit
UL 1993 Environmental Rating
Damp
Lamp Ballast Type
Type B
Amps
0.208 to 0.09 A

Description

25 Watt T5 LED - Miniature Bi-Pin Base - 3500K - 50000 Average Rated Hours - 3200 Lumens - 120-277 Volts - Type B - Ballast Bypass - Single or Double Ended Wiring
