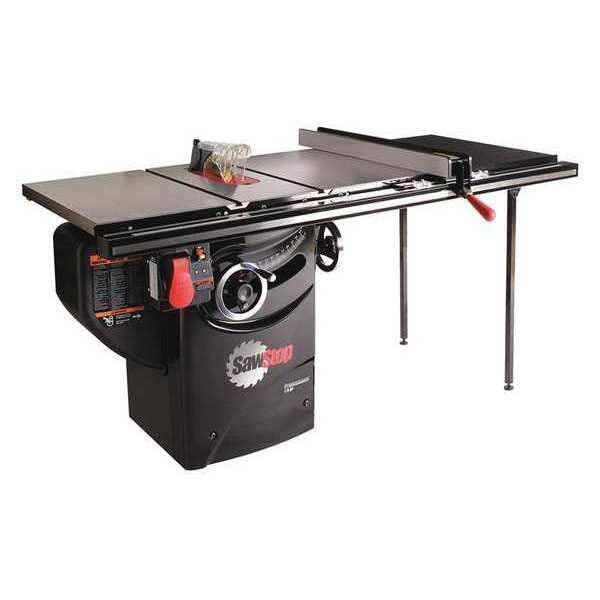

Corded Table Saw 10 in Blade Dia., 36 in
Mfr # PCS175-TGP236
Zoro # G3345076
product price: $3,862.99
/ea
Item requires special delivery charges. A $325.00 per item surcharge will be applied.
Key Features
Blade Dia.
10 in
Max. Cut Width Right of Blade
36 in
Voltage
120 V AC
Bevel Angle Range
0 Degrees to 45 Degrees Left
Max. Cutting Depth @ 0 Deg.
3 1/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PCS175-TGP236
Zoro #
G3345076
UPC #
857766003338
Country of Origin
Taiwan, Province of China
Dimensions
Blade Dia.
10 in
Max. Cut Width Right of Blade
36 in
Max. Cutting Depth @ 0 Deg.
3 1/8 in
Max. Cutting Depth @ 45 Deg.
2 1/4 in
Overall Width
69 1/8 in
Arbor Size
5/8 in
Depth of Cut @ 45 Deg.
2-1/4"
Overall Depth
33 in
Overall Height
34 in
Exhaust Port Size
4 in
Depth of Cut @ 90 Deg.
3-1/8"
Table Length
27 in
Max. Cut Width Left of Blade
12 in
Table Width
69 1/8 in
Table Width with Extension
69 1/8 in
Cord Length
9 ft
Cutting Depth at 0 Degrees - Maximum
3 1/8 in
Cutting Width Left of Blade - Maximum
12 in
Cutting Depth at 45 Degrees - Maximum
2 1/4 in
Cutting Width Right of Blade - Maximum
36 in
Blade Diameter
10 in
Description
Table Saw, Power Source Corded, Series PCS, Blade Dia. 10 in, Max. Blade Speed 4,000 RPM, Current 14 A, Horsepower 1.75 hp, Arbor Size 5/8 in, Arbor Shape Round, Bevel Angle Range 0 Degrees to 45 Degrees Left, Max. Cutting Depth @ 0 Deg. 3 1/8 in, Max. Cutting Depth @ 45 Deg. 2 1/4 in, Table Saw Type Cabinet, Stand Type Cabinet, Max. Cut Width Right of Blade 36 in, Max. Cut Width Left of Blade 12 in, Table Width 69 1/8 in, Table Width with Extension 69 1/8 in, Table Length 27 in
Restrictions
This item has been restricted from sale in the following states:
AK, HI
