Shop SCHAEFER

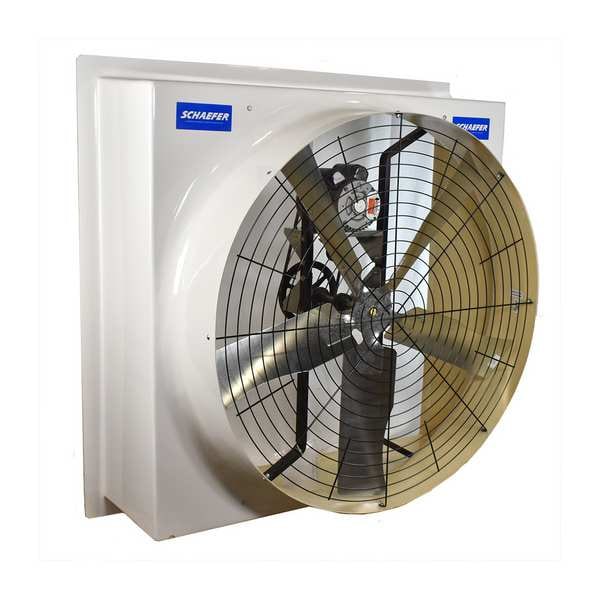

Exh Fan, B/D, 36 Dia, CFM 11,893,115/230 V

  • Mfr # FFM365G12

  • Zoro # G9867137

product price:  $2,214.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Type
Belt Drive, Assembled
Max. Ambient Temp. (F)
104 Degrees F
Venturi Clearance Dia. (In.)
37 in
Flange Width (In.)
2 1/4 in
Width (In.)
42 3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FFM365G12
Zoro #
G9867137
UPC #
717490343561
Country of Origin
United States

Dimensions

Venturi Clearance Dia. (In.)
37 in
Flange Width (In.)
2 1/4 in
Width (In.)
42 3/4 in
Propeller Dia. (In.)
36 in
Shaft Dia. (In.)
5/8 in
Max. Depth (In.)
25 1/4 in
Height (In.)
43 1/8 in
Venturi Depth (In.)
10 in
Overall Width
42 3/4 in
Overall Height
43 1/8 in
Flange Width
2 1/4 in
Venturi Depth
10 in
For Cut-Out Length
43 1/2 in
For Cut-Out Width
43 1/2 in
Profile Height Family
High
Venturi Diameter
37 in
Overall Depth
25 1/4 in
For Cut-Out Height
43 3/4 in
Overall Diameter
36 in
Manufacturer Warranty Length
2 yr
For Maximum Wall Thickness
12 in
Shaft Diameter
5/8 in
For Minimum Wall Thickness
2 in
Blade Diameter
36 in

Details

Type
Belt Drive, Assembled
Max. Ambient Temp. (F)
104 Degrees F
Motor Enclosure
Totally Enclosed Air Over
CFM @ 0.050-In. SP
9500
Bearing Type
Permanently Lubricated Sealed Ball
Hz
60
Number of Blades
5
Motor Type
3-Phase
Propeller Material
Galvanized Steel
Full Load Amps
4.6/2.3 A
Watts
373 W
Item
Agricultural Exhaust Fan
Opening Required W (In.)
43 3/4 in
HP
1/2 hp
Motor RPM
1725
Free Area (Square-Ft.)
12.84
Agency Compliance
UL Listed Motor
CFM @ 0.000-In. SP
10,250
CFM @ 0.150-In. SP
8149
Motor Insulation
Class B
Frame Finish
Polished
Fan RPM
448
Mounting Location
wall
CFM @ 0.100-In. SP
8550
Phase
1
Frame Material
Fiberglass
For Use With
General Exhaust Application
Voltage
115/230
Opening Required H (In.)
43 3/4 in
Includes
Shutter, Belt Tensioner, Outlet Guard
Standards
UL Listed
Number of Shutters
1
Housing Finish
Polished Tan Fiberglass
Ventilation Type
Exhaust
Number of Speeds
1
Includes Motor
Yes
Assembled
Assembled
Blade Finish
Galvanized
Includes Dehumidistat
No
Housing Material
Fiberglass
Fan Style
Cylinder
Guard Finish
Powder Coated
Motor Speed
1,725 RPM
Free Area
12.8 sq ft
Drive Type
Belt Drive
Exhaust Airflow @ 0.000 in SP
10,250 cfm
Guard Type
Exhaust
Frequency
60 Hz
Thermal Protection
Yes
Blade Material
Steel
Exhaust Airflow @ 0.100 in SP
8,550 cfm
Electrical Connection
Hardwired
Maximum Airflow
10,250 cfm
Wattage
373 W
Guard Material
Steel
Nameplate Voltage
115/230V AC
Maximum Ambient Operating Temperature
104 Degrees F
Full Load Current
4.6 A
Number of Fans
1
Speed Controllable
No
Motor Horsepower
1/2 hp
Supply Airflow @ 0.000 in SP
10,250 cfm

Description

Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 36 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 10,250 cfm, For Cut-Out Height 43 3/4 in, For Cut-Out Width 43 1/2 in, For Maximum Wall Thickness 12 in, For Minimum Wall Thickness 2 in, Frame Finish Polished, Frame Material Fiberglass, Guard Finish Powder Coated, Guard Material Steel, Guard Type Exhaust, Housing Material Fiberglass, Housing Finish Polished Tan Fiberglass
