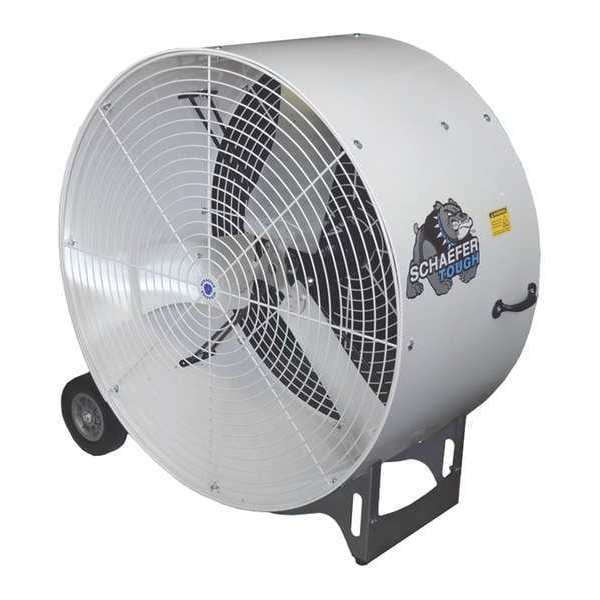

Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 11,700 cfm, Non-Oscillating

  • Mfr # VKM36-O

  • Zoro # G8834463


product price: $766.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Key Features

Blade Diameter
36 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VKM36-O
Zoro #
G8834463
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
36 in
Width
40-3/4 in
Shaft Dia.
5/8 in
Outside Dia.
37-3/4 in
Max. Depth
19-3/4 in
Height
39-3/4 in
Depth
19 3/4 in
Fan Cord Length
5 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V
Phase
1
Motor HP
1/2
Air Flow
11,700 cfm
Drive Type
Direct Drive
Blade Material
Galvanized Steel
Sound Level
75 dBA
Item
Air Circulator
CFM/Watt
25.1
Motor RPM
865 RPM
Environmental Applications
Industrial
Standards
UL, cUL, CSA
Max. Ambient Temp.
104 Degrees F
Wire Guard Finish
Gloss Powder Coated
Application
Spot Cooling and People Cooling; Air Circulation
Guard Material
Steel
Thermal Protection
Automatic
Motor Type
Permanent Split Capacitor
Number of Blades
3
Assembled
Yes
Motor Insulation
Class F
Fan Mounting Location
Floor
CFM High
11000
Air Velocity @ 10 Ft.
700 fpm
Air Velocity @ 20 Ft.
550 fpm
Mobile/Stationary
Mobile
Fan Style
Standard Duty
Fan Accessory Style
Standard
Hz
60
Air Velocity @ 40 Ft.
400 fpm
Watts
439 W
Housing Material
Polyethylene
Motor Enclosure
Totally Enclosed Air Over
Bearing Type
Ball, Permanently Lubricated and Sealed
Wheeled Base
Mobile
Amps
7.0/3.5
Fan Housing Material
Polyethylene
Assembly Required
No
RPM
865
Material
Polyethylene
Color
White
Motor hp
1/2 hp

Description

Standard-Duty Industrial Fan, Blade Dia. 36 in, Mobile, Non-Oscillating, 1 Speeds, Voltage 115/230V AC, 1 Phase, CFM High 11,000, Air Velocity @ 20 Ft. 550 fpm, Motor HP 1/2 hp, Motor RPM 825, Operating Amps 7.0/3.5, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 865, Sound Level 75 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 439, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 37-3/4 In., Height 39 3/4 in, Width 40 3/4 in
