  5. Standard Duty Industrial Fan, Wall Mount, 36 in Blade Dia, 115/230V, 11,400 cfm, Non-Oscillating

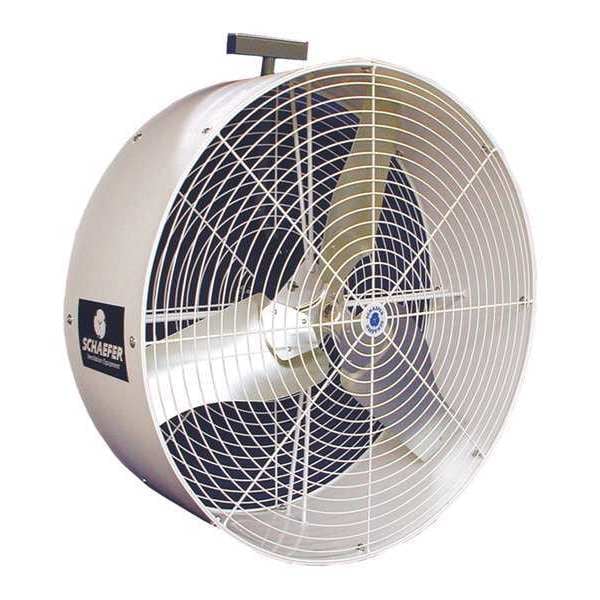

Schaefer Standard Duty Industrial Fan, Wall Mount, 36 in Blade Dia, 115/230V, 11,400 cfm, Non-Oscillating GVK36 - main

Standard Duty Industrial Fan, Wall Mount, 36 in Blade Dia, 115/230V, 11,400 cfm, Non-Oscillating

  • Mfr # GVK36

  • Zoro # G4466034

product price:  $550.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
36 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GVK36
Zoro #
G4466034
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
36 in
Width
37-1/2 in
Max. Depth
16-1/2 in
Shaft Dia.
5/8 in
Height
37-1/2 in
Outside Dia.
37-1/2 in
Fan Cord Length
5 ft
Depth
16 1/2 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
Motor HP
1/2
Air Flow
11,400 cfm
Drive Type
Direct Drive
Blade Material
Galvanized Steel
Item
Industrial Fan
Guard Material
Polycarbonate
Includes
Yoke Mount
Application
Spot Cooling and People Cooling
Motor Enclosure
Totally Enclosed Air Over
Fan Style
Standard Duty
Assembled
Yes
Motor RPM
825 RPM
Number of Blades
3
Watts
497 W
Motor Insulation
Class B
CFM High
11400
Mobile/Stationary
Stationary
Thermal Protection
Automatic
Housing Material
Polyethylene
Max. Ambient Temp.
104 Degrees F
Motor Type
Permanent Split Capacitor
Fan Accessory Style
Standard
Hz
60
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Fan Mounting Location
Wall
Environmental Applications
Industrial
Number of Conductors
3
Wire Guard Finish
Powder Coated
Fan Housing Material
Steel
Amps
7/3.5
Assembly Required
No
RPM
825
Wheeled Base
Stationary
Material
Polyethylene
Color
White
Motor hp
1/2 hp
NEMA plug Configuration
5-15p

Description

Standard-Duty Industrial Fan, Blade Dia. 36 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115/230V AC, 1 Phase, CFM High 11,400, Motor HP 1/2 hp, Motor RPM 825, Operating Amps 7/3.5, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 825, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 497, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 37-1/2 In., Height 37 1/2 in, Width 37 1/2 in, Max. Depth 16-1/2 In., Cord Length 5 ft.
