Shop SCHAEFER

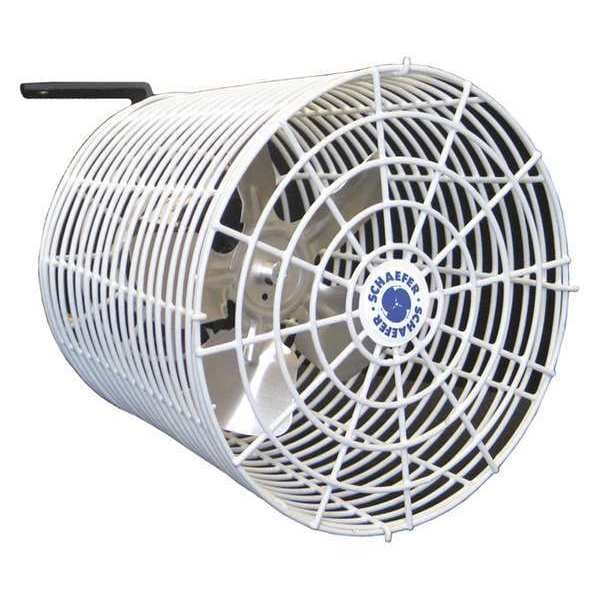

Standard Duty Industrial Fan, Wall Mount, 8 in Blade Dia, 115V, 450 cfm, Non-Oscillating

  • Mfr # VK8

  • Zoro # G2274011

product price:
$
199.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
8 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V AC
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VK8
Zoro #
G2274011
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
8 in
Outside Dia.
11"
Height
11 in
Shaft Dia.
1/4 in
Width
11 in
Max. Depth
10"
Fan Cord Length
5 ft
Depth
10 in
Max. Mounting Height
Unrestricted

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V AC
Phase
1
Motor HP
1/22 hp
Air Flow
450 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Item
Mounted Fan
Housing Material
Steel
Environmental Applications
Industrial
Fan Mounting Location
Wall
Number of Blades
5
Motor Insulation
B
Hz
60 Hz
NEMA Plug Configuration
5-15P
Assembled
Yes
Bearing Type
Sleeve
Fan Accessory Style
Standard
Max. Ambient Temp.
104 Degrees F
Motor RPM
1550
Motor Enclosure
Totally Enclosed Air-Over
Standards
AMCA 230
Thermal Protection
Auto
Application
Spot Cooling and People Cooling
Wire Guard Finish
Powder Coated
Number of Conductors
3
Watts
50 W
Motor Type
Permanent Split Capacitor
Fan Style
Standard
CFM High
448
Includes
Mounting Bracket
Mobile/Stationary
Stationary
Guard Material
Steel
Wheeled Base
Stationary
Amps
0.6
Assembly Required
No
Fan Housing Material
Steel
RPM
1,550 RPM
Material
Steel
Color
White
Motor hp
1/100 hp
NEMA plug Configuration
5-15p
Airflow
450 cfm
Motor Design
Permanent Split Capacitor
Mount Type
Arm
Guard Color
White
For Location
Greenhouse

Description

Mounted Fan, Blade Dia. 8 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115V AC, 1 Phase, CFM High 448, Motor HP 1/22 hp, Motor RPM 1550, Operating Amps 0.6, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 1550, Sound Level Not Applicable, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 50 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 11 In., Height 11 in, Width 11 in, Max. Depth 10 In., Cord Length 5 ft.
