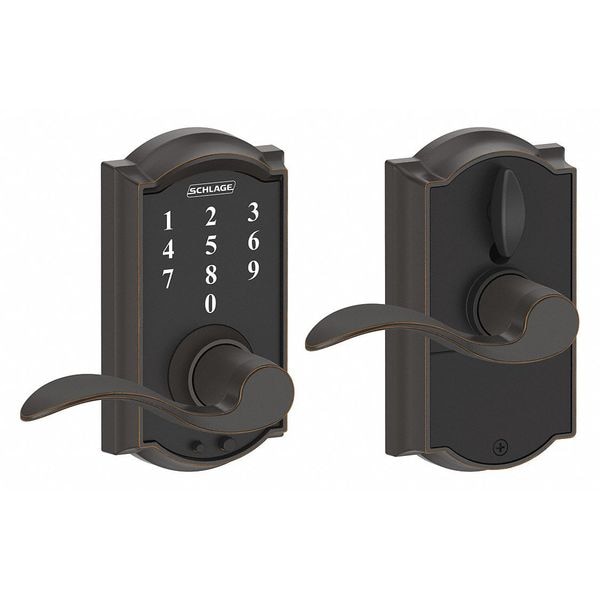

Schlage Residential Electronic Lock, Lever, Antique Bronze FE695 CAM716ACC - main

Electronic Lock, Lever, Antique Bronze

  • Mfr # FE695 CAM716ACC

  • Zoro # G3952072

product price: $239.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Entry
Key Override Options
Schlage "C" 6 Pin Keyway
Hand
Field Reversible
Finish
Antique Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FE695 CAM716ACC
Zoro #
G3952072
UPC #
-
Country of Origin
Mexico

Dimensions

Door Thickness
1-3/8 in to 1-3/4 in
Overall Depth
3 in
Strike Base Width
1 5/8 in
Door Thickness - Minimum
1 3/8 in
Overall Width
5 3/8 in
Door Thickness - Maximum
1 3/4 in
Overall Height
7 7/8 in
Strike Base Height
2 1/4 in

Details

Item
Electronic Keyless Lock
Handle Type
Lever
Function
Entry
Key Override Options
Schlage "C" 6 Pin Keyway
Hand
Field Reversible
Finish
Antique Bronze
Backset
2 3/8 in, 2 3/4 in
Electrical/Mechanical
Electrical
Product Type
Electronic Keyless Lock
Lockset Function
Privacy
Case Material
Metal
Grade
2
Weather Resistant
Yes
Max. User Codes
19
Series
FE695
Ligature Resistant
No
Battery Life
1 to 2 yr
Lock Material
Zinc Alloy
Keypad Material
Zinc
Includes
Mounting Hardware
Power Source
9V Battery
Mounting Style
Cylindrical
Location Type
Commercial, Multiple Family Residential, Residential
Lockset Fire Rating
Not Rated
Lockset Finish
Antique Bronze
Network Interface
None
For Use With
Various Door Types
Standards
ANSI/BHMA A156.2-2011 Grade 2, ANSI/BHMA A156.39-2015 Grade AAA
Fire Rating
Not Rated
Number of Keys
2
Max. Proximity Range
At Lock
Event Audit Trail
No
ADA Compliant
No
Timed Entry Allowance
Free Egress At All Times
IP Rating
Not Rated
Access Method
Touch Screen Keypad
Voltage
9 V
UL Fire Rating
Not Rated
Temperature - Minimum
14 Degrees F
Includes Hardware
Hardware Included
Temperature - Maximum
120 Degrees F
User Codes - Maximum
19
Lockset Handle Type
Lever
Bolt Throw
1/2 in
ANSI Grade
2
ANSI/BHMA Finish
Aged Bronze
Hand Orientation
Non-Handed
Lockset Type
Electrical/Mechanical
Lockset Material
Metal
Operation Type
Push Button

Description

Electronic Keyless Lock, Function Entry, Access Method Touch Screen Keypad, Mounting Style Cylindrical, Lock Material Zinc Alloy, Finish Antique Bronze, Series FE695, Handle Type Lever, Door Thickness 1-3/8 in to 1-3/4 in, Key Override Options Schlage In.C In. 6 Pin Keyway, Hand Field Reversible, Network Interface None, Keypad Material Zinc, Power Source 9V Battery, Battery Life 1 to 2 yr, Max. User Codes 19, Fire Rating Not Rated, ADA Compliant No, Grade 2
