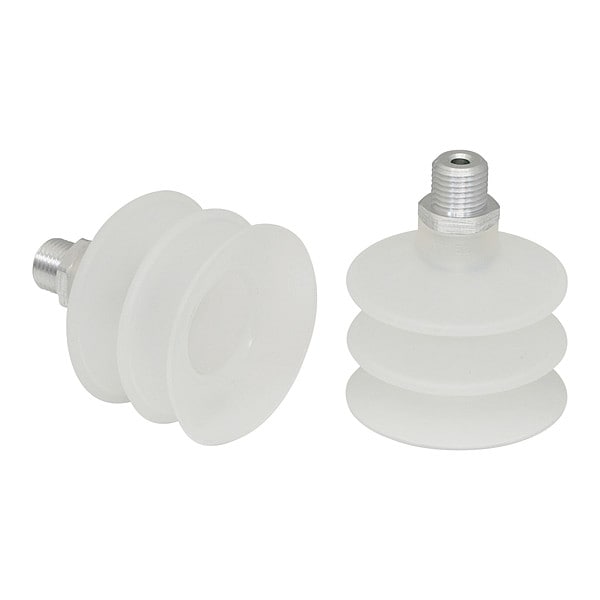

Bellow Suction Cup, 2.5
Mfr # 10.01.06.00586
Zoro # G511471532
product price:Â $32.89
/ea
Sold in multiples of 10 for $328.90
Key Features
Pad Type
Multi-Bellows
Pad Material
Food Grade Silicone Rubber
Port Size
1/4 in
Pad Height
52.7 mm
Stroke
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 10.01.06.00586
- Zoro #
- G511471532
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Port Size
- 1/4 in
- Pad Height
- 52.7 mm
- Overall Height
- 63.7 mm
- Outside Diameter
- 52 mm
- Pad Diameter
- 55 mm
Details
- Pad Type
- Multi-Bellows
- Pad Material
- Food Grade Silicone Rubber
- Stroke
- 25 mm
- Adapter Material
- Aluminum
- Item
- Vacuum Pad Assembly
- Port Type
- G
- Weight
- 32 g
- Number of Folds
- 2.5
- Durometer
- 55 A
- Hardness
- 55 Shore A
- Standards
- DIN ISO 3302-1 M3, FDA Approved
- Maximum Vacuum Pressure
- -0.6 bar
- Series
- FSG
- Pad Color
- Clear
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 52 mm, Overall Height 63.7 mm, Pad Color Clear, Pad Diameter 55 mm, Hardness 55 Shore A, Pad Height 52.7 mm, Pad Material Food Grade Silicone Rubber, Pad Type Multi-Bellows, Port Size 1/4 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, FDA Approved, Stroke 25 mm, Weight 32 g
