Shop SCHMALZ

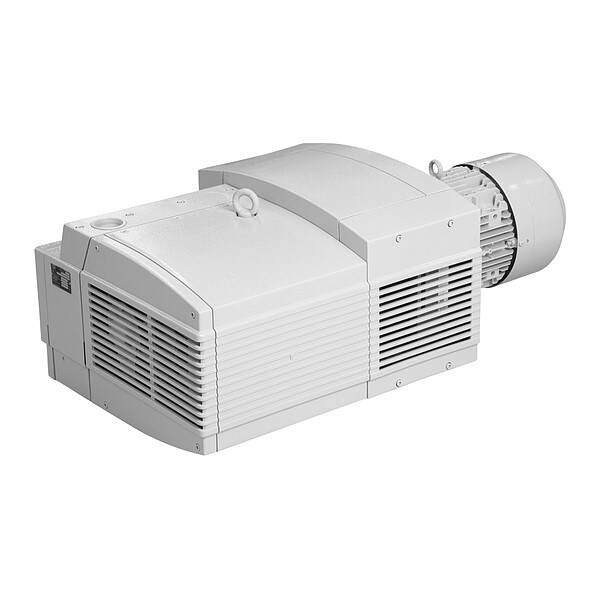

Dry running vacuum pump

  • Mfr # 10.03.01.00324

  • Zoro # G111632807

product price:
$
16,135.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Voltage
230/460V AC
Phase
Three
Weight
108 kg
Overall Length
851 mm
Overall Height
336 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10.03.01.00324
Zoro #
G111632807
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
851 mm
Overall Height
336 mm
Overall Width
470 mm
Inlet Size
1 1/2 in
Wire Rope Length
851 mm

Details

Item
Dry running vacuum pump
Voltage
230/460V AC
Phase
Three
Weight
108 kg
Application
Picking Up and Clamping Workpieces, Rapid Evacuation of Vacuum Systems
Output Power
3.6 kW
Series
EVE-TR
Maximum Operating Pressure
1,000 mbar
Inlet Gender
Female
Runs Dry
Yes
Maximum Vacuum
900 mbar
Current Rating
12.7 A, 6.34 A
Sound Level
75 dBA, 77 dBA
Standards
CSA, UL Listed
Enclosure Rating
IP 55
Maximum Flow Rate
112 cu m/hr
Pump Type
Dry Running
Bearing Type
Permanently Lubricated
Maximum Operating Temperature
20 Degrees C
Frequency
60 Hz
Inlet Type
G

Description

Dry running vacuum pump, Output Power 3.6 kW, Phase Three, Voltage 230/460V AC, Maximum Flow Rate 112 cu m/hr, Maximum Vacuum 900 mbar, Inlet Size 1 1/2 in, Inlet Type G, Inlet Gender Female, Application Picking Up and Clamping Workpieces, Rapid Evacuation of Vacuum Systems, Maximum Operating Pressure 1,000 mbar
