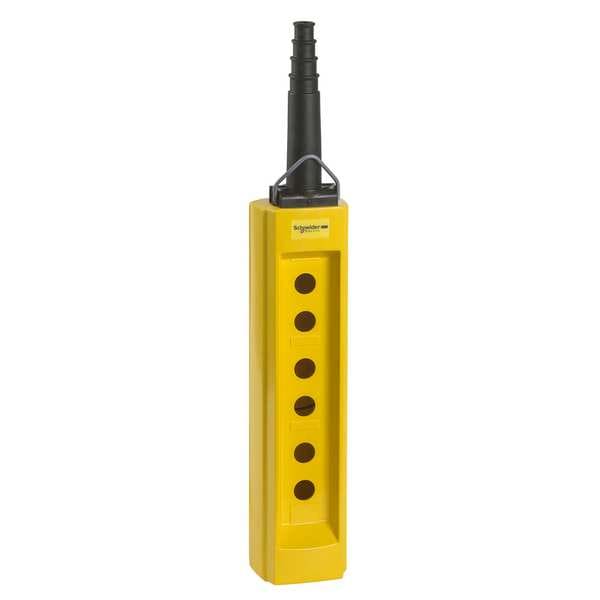

Schneider Electric 6 Button Pendant W/O Ko In Base XACB06 - main

6 Button Pendant W/O Ko In Base

  • Mfr # XACB06

  • Zoro # G0862079

product price: $376.99
/ea
Free Shipping & Returns

Key Features

Color
Yellow
Standards
CSA, EN/IEC, IP65, RoHS
Includes
Cap Sleeve
Material
Plastic
IP Rating
IP65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACB06
Zoro #
G0862079
UPC #
785901230762
Country of Origin
Czechia

Dimensions

Depth
29.53 in
Hole Size
40 mm
Width
3.94 in
Height
3.66 in
Overall Width
4 in
Overall Height
3 5/8 in
Rubber Sleeve Cable Entry Size - Minimum
0.39 in
Overall Depth
29 1/2 in
Compatible Panel Cutout Diameter
22 mm
Rubber Sleeve Cable Entry Size - Maximum
0.87 in

Details

Item
Pendant Enclosure
Color
Yellow
Standards
CSA, EN/IEC, IP65, RoHS
Includes
Cap Sleeve
Material
Plastic
IP Rating
IP65
Cable Entry
0.39 in to 0.87 in
Enclosure Material
glass reinforced polyester
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Product Or Component Type
pendant control station
Product Certifications
CSA type 4
Ik Degree Of Protection
IK08 EN 50102
Mechanical Durability
1000000 cycles
Number Of Cut-Out
6 cut-outs
Vertical Operator Cut-Out Centre
40 mm
Overvoltage Category
class II IEC 61140
Device Short Name
XACB
Ip Degree Of Protection
IP65 conforming to IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Shock Resistance
100 gn IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Electrical Circuit Type
control circuit || power circuit
Control Station Colour
yellow
Protective Treatment
TH
Control Station Type
double insulated
Enclosure Type
empty enclosure
Guard Rail
Without
Compatible with Brand
Schneider
Compatible with Series
XAC
Cable Entry Type
Rubber Sleeve

Description

Pendant Enclosure, Number of Holes 6, Cable Entry 0.39 in to 0.87 in, Color Yellow, Hole Size 40 mm, Material Plastic, Height 3.66 in, Width 3.94 in, Depth 29.53 in, Includes Cap Sleeve, Standards CSA, EN/IEC, IP65, RoHS
