Schneider Electric

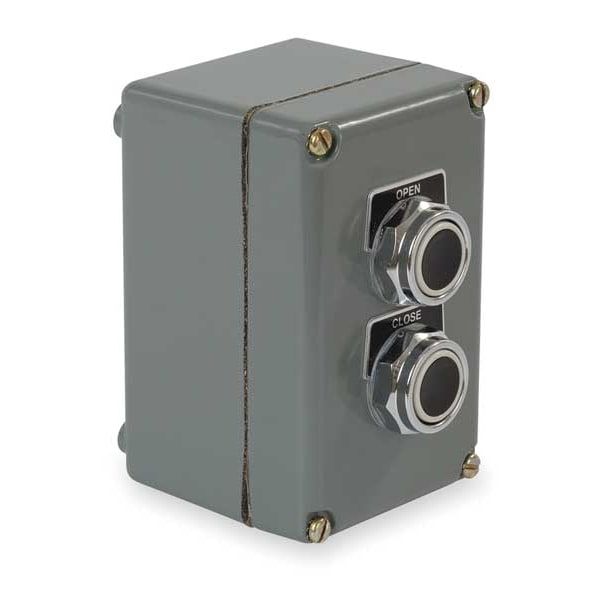

Push Bttn Cntrl Statn, 2NO/2NC, Open/Close

product price: $220.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact Form 2NO/2NC
  • Number of Gangs 1
  • Legend Open/Close
  • Type of Operator Push Button/Push Button
  • Number of Pilot Lights 0
See all product information

Product Information

Dimensions

Size 30 mm
Height 3.53 in
Width 3.58 in
Depth 5.75 in
Overall Height 5.75 in
Manufacturer Warranty Length 18 mo
Hub Size - Maximum 3/4 in
Overall Depth 3.53 in
Panel Cutout Diameter 30 mm
Overall Width 3.62 in

Details

Item Control Station
Contact Form 2NO/2NC
Number of Gangs 1
Legend Open/Close
Type of Operator Push Button/Push Button
Number of Pilot Lights 0
Number of Operators 2
NEMA Rating 1, 13, 3, 4
Hub Style Dead-End
Series 9001K
Contact Rating 10A @ 600V AC, 2.5A @ 24V DC
Standards UL Listed
Action Momentary/Momentary
Mechanical Interlock No
Hub 3/4 in NPT
Enclosure Material Zinc
Enclosure Color Gray
Green Environmental Attribute RoHS 2011/65/EU Compliant
NEMA Contact Rating Designation A600/Q600
Mounting Wall
IP Rating IP66
Operator Color (2) Black
Number of Speeds 1
Ambient Air Temperature For Operation -13 to 140°F (-25 to 60°C)
Enclosure/Cubicle Description Wall-mounted enclosure 2 cut-outs 30 mm
Product Or Component Type Control station
Provided Equipment Label plate OPEN-CLOSE
NEMA Degree Of Protection NEMA 4; NEMA 3; NEMA 1; NEMA 13
Ambient Air Temperature For Storage -40 to 158°F (-40 to 70°C)
Level Or Class Class III; Class II Division 2 Group G
Connector Type Screw clamp connector
Environmental Characteristic Resistant against immersion in water; Dust and oil resistant
Mechanical Interlocking Without mechanical interlock
Contact Block Name KA1
Rated Operational Current AC 10 A
Connections - Terminals Direct connection AWG 2) solid stranded; Direct connection AWG 12) solid stranded; Direct connection AWG 24) solid stranded
Product Certifications UL Listed
Control Station Composition 2 push-buttons 2 NO + 2 NC
Operator Configuration (2) Push Buttons
DC Contact Rating 0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Operating Temperature - Minimum -13 Degrees F
NEMA Enclosure Rating 1, 13, 3, 4
Operating Temperature - Maximum 140 Degrees F
AC Contact Rating 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Includes Mechanical Interlock No Mechanical Interlock Included.
Hazardous Location Specification Class II, Div 2, Group G, Class III, Div 1 and 2
Product Type Control Station

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Open/Close, Type of Operator Push Button/Push Button, Action Momentary/Momentary, Operator Color (2) Black, Contact Form 2NO/2NC, Mechanical Interlock No, NEMA Rating 1, 13, 3, 4, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, Mounting Wall, Hub 3/4 in NPT, Height 3.53 in, Width 3.58 in, Depth 5.75 in, Enclosure Material Zinc, Enclosure Color Gray
