- MFR #
- VLS1P063D2S
- Zoro #
- G0858512
- UPC #
- -
- Country of Origin
- Korea, Republic of
- Item
- Additional pole
- Contact Form
- 1NO
- Voltage
- 690V AC
- Number of Poles
- 1
- Amps
- 63
- IP Rating
- 20
- Use
- For Isolation
- Standards
- IEC 60947-3, CSA C22.2 No 4, UL98
- Color
- Gray
- [Ith] Conventional Free Air Thermal Current
- 63 A (at 55°C)
- Contact Operation
- simultaneous
- Electrical Durability
- 30000 cycles AC-21
- Mounting Support
- door
- Rated Conditional Short-Circuit Current
- 50 kA 400 V 63 A gG
- Fire Resistance
- 960°C IEC 60695-2-11
- Network Frequency
- 50/60 Hz
- Device Short Name
- VLS1P
- Suitability For Isolation
- yes
- Performance Level
- high performance
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Range Compatibility
- TeSys TeSys VARIO LS VLS3P
- Rated Operational Power In W
- 30 kW 400 V AC-23A), 45 kW 500 V AC-23A), 45 kW 690 V AC-23A)
- Mechanical Durability
- 30000 cycles
- Poles Description
- 1P
- [Icm] Rated Short-Circuit Making Capacity
- 3550 A 690 V
- Contacts Type And Composition
- 1 NO
- Network Type
- AC
- Connections - Terminals
- power circuit screw clamp terminals 50-50 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - without cable end
- [Ithe] Conventional Enclosed Thermal Current
- 63 A
- Ambient Air Temperature For Operation
- -25-55°C
- Intermittent Duty Class
- class 120 - 60 %
- Tightening Torque
- power circuit 5-6 N.m screw clamp terminals
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Ip Degree of Protection
- IP20 conforming to IEC 60529
- Making Capacity
- 94.5 A 690 V AC-21A, 189 A 690 V AC-22A, 630 A 690 V AC-23A
- [Ie] Rated Operational Current
- 60 A Ue: 600 V UL98, 63 A AC-21A Ue: 400 V, 63 A AC-21A Ue: 500 V, 63 A AC-21A Ue: 690 V, 63 A AC-22A Ue: 400 V, 63 A AC-22A Ue: 500 V, 63 A AC-22A Ue: 690 V, 63 A AC-23A Ue: 400 V, 63 A AC-23A Ue: 500 V, 47 A AC-23A Ue: 690 V
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Breaking Capacity
- 94.5 A 690 V AC-21A), 189 A 690 V AC-22A), 504 A 690 V AC-23A)
- Range
- TeSys
- Mounting Location
- right, left
- [Icw] Rated Short-Time Withstand Current
- 2500 A 690 V 1 s
- Conventional Free Air Thermal Current
- 63 A (at 131°F (55°C))
- Product Or Component Type

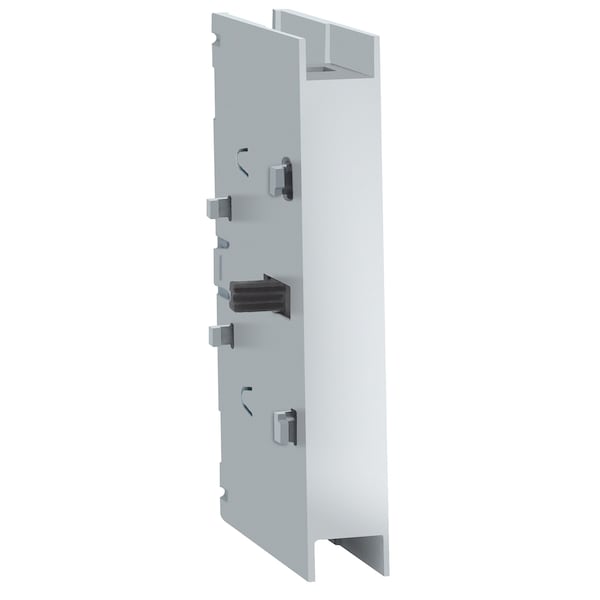

- additional pole
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Product Certifications
- cULus || GL
- Rated Operational Current
- 60 A Ue: 600 V UL98; 63 A AC-21A Ue: 400 V; 63 A AC-21A Ue: 500 V; 63 A AC-21A Ue: 690 V; 63 A AC-22A Ue: 400 V; 63 A AC-22A Ue: 500 V; 63 A AC-22A Ue: 690 V; 63 A AC-23A Ue: 400 V; 63 A AC-23A Ue: 500 V; 47 A AC-23A Ue: 690 V
