  7. Advanced Power Base, Non-Reversing, 1NC/1NO, 24V, 48V-72V, 110V-240V AC & 110V-220V DC, 3 P

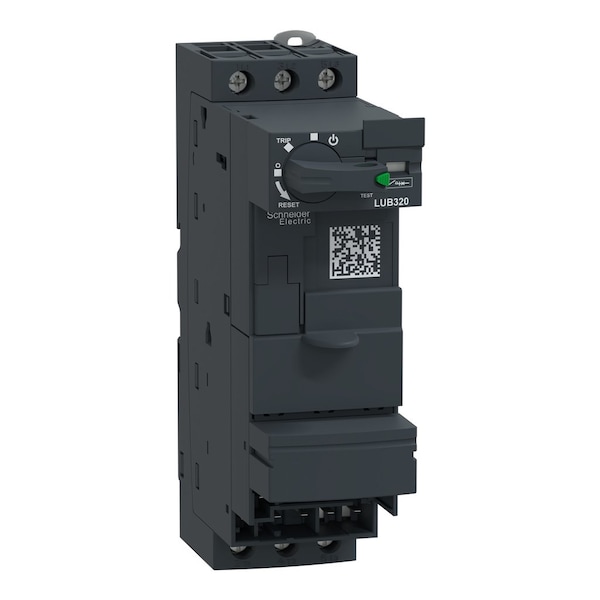

Schneider Electric Advanced Power Base, Non-Reversing, 1NC/1NO, 24V, 48V-72V, 110V-240V AC & 110V-220V DC, 3 P LUB320 - main

Advanced Power Base, Non-Reversing, 1NC/1NO, 24V, 48V-72V, 110V-240V AC & 110V-220V DC, 3 P

  • Mfr # LUB320

  • Zoro # G0561876

product price:  $440.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V, 48V-72V, 110V-240V AC & 110V-220V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LUB320
Zoro #
G0561876
UPC #
785901221821
Country of Origin
France

Dimensions

Overall Width
45 mm
Overall Depth
126 mm
Overall Height
154 mm

Details

Item
Advanced Power Base
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V, 48V-72V, 110V-240V AC & 110V-220V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Standards
EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
Features
Free of Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation
Weight
0.865 kg
Operating Voltage
690V AC
Mechanical Durability
15 Mcycles
Product Name
TeSys Ultra
Control Circuit Voltage
24 V AC 50/60 Hz; 24 V DC; 48 to 72 V AC 50/60 Hz; 48 to 72 V DC; 110 to 240 V AC 50/60 Hz; 110 to 220 V DC
Rated Service Breaking Capacity
50 kA 230 V; 50 kA 440 V; 10 kA 500 V; 4 kA 690 V
Tightening Torque
Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) flat 0.20 in (5 mm); Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) Philips no 1 0.20 in (5 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) flat 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) Philips No 2 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) pozidriv No 2 0.24 in (6 mm)
Rated Insulation Voltage
690 V IEC 60947-6-2 3; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Typical Current Consumption
200 mA 24 V DC I maximum while closing with LUCM; 220 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 220 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 25 mA 110 to 220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 25 mA 110 to 240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD; 280 mA 110 to 220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 110 to 240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 48 to 72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 48 to 72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 45 mA 48 to 72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD; 45 mA 48 to 72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 75 mA 24 V DC I rms sealed with LUCM; 80 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 90 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD
Heat Dissipation
3 W control circuit with LUCA, LUCB, LUCC, LUCD; 1.8 W control circuit with LUCM
Maximum Operating Rate
3600 cyc/h
Connections - Terminals
Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1 to 10 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) rigid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 6 mm²) flexible without cable end; Control circuit without connection
Compatibility Code
LUB
IP Degree Of Protection
IP20 IEC 60947-1 front panel and wired terminals); IP20 IEC 60947-1 other faces); IP40 IEC 60947-1 front panel outside connection zone)
Fixing Mode
Clipped DIN rail; Screw-fixed plate)
Shock Resistance
10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27
Immunity To Voltage Dips
70% / 500 ms IEC 61000-4-11
Immunity To Microbreaks
3 ms control circuit
Utilisation Category
AC-43; AC-44; AC-41
Resistance To Radiated Fields
9.14 V/m (10 V/m) 3 IEC 61000-4-3
Rated Impulse Withstand Voltage
6 kVIEC 60947-6-2
Non-Dissipating Shock Wave
1 kV serial mode 24 to 240 V AC IEC 60947-6-2; 1 kV serial mode 48 to 220 V DC IEC 60947-6-2; 2 kV common mode 24 to 240 V AC IEC 60947-6-2; 2 kV common mode 48 to 220 V DC IEC 60947-6-2
Operating Time
35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit; 50 ms Greater than or Equal to 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 65 ms closing with LUCM control circuit
Operating Altitude
6561.68 ft (2000 m)
Resistance To Electrostatic Discharge
8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2
Rated Operational Current
28.5 A Less than or Equal to 440 V; 23 A 500 V; 21 A 690 V
Suitability For Isolation
Yes
Protective Treatment
TH IEC 60068
Conventional Free Air Thermal Current
32 A
Safe Separation Of Circuit
400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
Immunity To Radioelectric Fields
10 V IEC 61000-4-6
Fire Resistance
1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12
Auxiliary Contacts Type
Linked contacts 1 NO + 1 NC) IEC 60947-4-1; Mirror contact 1 NC) IEC 60947-1
Ambient Air Temperature For Storage
-40 to 185°F (-40 to 85°C)
Vibration Resistance
2 gn 5 to 300 Hz) power poles open IEC 60068-2-27; 4 gn 5 to 300 Hz) power poles closed IEC 60068-2-27
Resistance To Fast Transients
2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-13 Degrees F
Frequency
50/60 Hz

Description

32A Self Protstr W/Cntrl Terms
