Schneider Electric Advcntrlunitcl203Ph 832A 24Vdc LUCD32BL - main

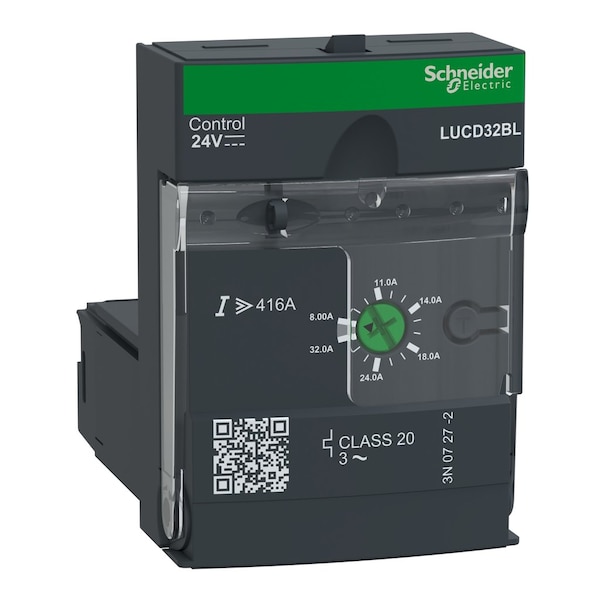

Advcntrlunitcl203Ph 832A 24Vdc

  • Mfr # LUCD32BL

  • Zoro # G0561849

product price:  $197.99
/ea
Free Shipping & Returns

Key Features

Coil Voltage
24V DC
Standards
EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
Features
Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Earth fault protection; Manual reset; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
Operating Voltage
690V AC
Resistance To Fast Transients
2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LUCD32BL
Zoro #
G0561849
UPC #
785901276340
Country of Origin
France

Dimensions

Overall Width
45 mm
Overall Depth
60 mm
Overall Height
66 mm

Details

Item
Advanced Control Unit
Coil Voltage
24V DC
Standards
EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
Features
Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Earth fault protection; Manual reset; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
Operating Voltage
690V AC
Resistance To Fast Transients
2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
IP Degree Of Protection
IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1
Fire Resistance
1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12
Main Function Available
Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Earth fault protection; Manual reset
Resistance To Radiated Fields
9.14 V/m (10 V/m) 3 IEC 61000-4-3
Operating Altitude
6561.68 ft (2000 m)
Ambient Air Temperature For Storage
-40 to 185°F (-40 to 85°C)
Control Circuit Voltage
24 V DC
Fixing Mode
Plug-in front face)
Heat Dissipation
3 W control circuit with LUB32; 3 W control circuit with LUB38
Shock Resistance
10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27
Motor Power KW
15 kW 400 to 440 V AC 50/60 Hz; 15 kW 500 V AC 50/60 Hz; 18.5 kW 690 V AC 50/60 Hz
Phase Failure Sensitivity
Yes
Immunity To Radioelectric Fields
10 V IEC 61000-4-6
Thermal Overload Class
Class 20 40 to 60 Hz -13 to 158°F (-25 to 70°C) IEC 60947-6-2; Class 20 40 to 60 Hz -13 to 158°F (-25 to 70°C) UL 508
Rated Impulse Withstand Voltage
6 kV IEC 60947-6-2
Protective Treatment
TH IEC 60068
Safe Separation Of Circuit
400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
Vibration Resistance
2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6
Operating Time
35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 70 ms closing with LUB32 control circuit; 70 ms closing with LUB38 control circuit
Tripping Threshold
14.2 x Ir +/- 20%
Product Name
TeSys Ultra
Immunity To Microbreaks
3 ms
Control Circuit Voltage Limits
20 to 27 V DC 24 V in operation; 14.5 V DC 24 V drop-out
Compatibility Code
LUCD
Immunity To Voltage Dips
70% / 500 ms IEC 61000-4-11
Utilisation Category
AC-41; AC-43; AC-44
Resistance To Electrostatic Discharge
8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2
Typical Current Consumption
220 mA 24 V DC I maximum while closing with LUB32; 220 mA 24 V DC I maximum while closing with LUB38; 80 mA 24 V DC I rms sealed with LUB32; 80 mA 24 V DC I rms sealed with LUB38
Rated Insulation Voltage
690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
Reset Type
Manual
Minimum Operating Temperature
-13 Degrees F
Maximum Operating Temperature
158 Degrees F
Phase
Three
Maximum Overload Relay Current Setting
32 A
Frequency
40 to 60 Hz
Compatible Manufacturer Model Number
LUB32; LUB38; LUB320; LUB380; LU2B32BL; LU2B38BL

Description

Advcntrlunitcl203Ph 832A 24Vdc
