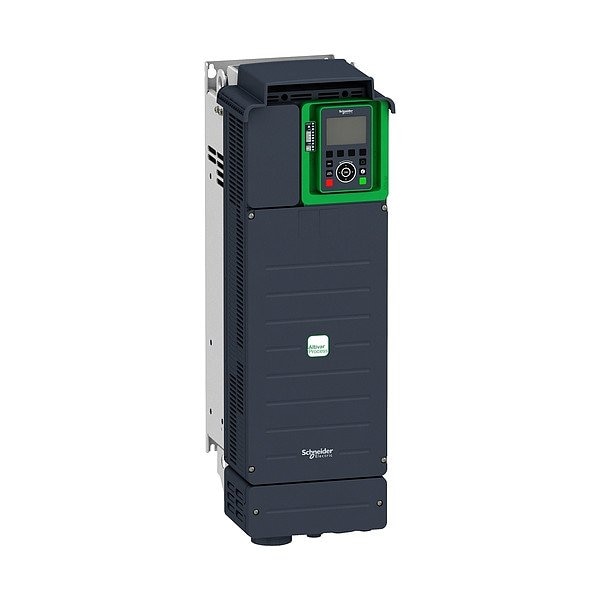

ATV930, Black/Green

Mfr # ATV930D45N4US
Zoro # G622731402

11,900.99

Free Shipping & Returns

Key Features

Number of Inputs - Digital

Communication Protocols Supported

EtherNet/IP, Modbus Serial, Modbus TCP

IP Rating

IP21

Overall Height

673 mm

Overall Depth

274 mm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ATV930D45N4US
Zoro #: G622731402
UPC #: -
Country of Origin: United States

Dimensions

Overall Height: 673 mm
Overall Depth: 274 mm
Overall Width: 226 mm

Details

Number of Inputs - Digital: 10
Communication Protocols Supported: EtherNet/IP, Modbus Serial, Modbus TCP
IP Rating: IP21
Includes Communication Port: Yes
Number of Outputs - Relay: 3
Input Voltage: 380-480V AC
Output Voltage: 480V AC
Adjustable Acceleration Time: 0.01 to 9999 sec
Output Phase: Three
Number of Outputs - Analog: 2
Adjustable Deceleration Time: 0.01 to 9999 sec
Output Frequency - Maximum: 599 Hz
Output Type: Analog, Digital, Relay
Output Horsepower: 60 hp
Bypass Design: No Bypass
Line Contactor Design: With Line Contactor
Number of Inputs - Analog: 3
Standards: CE, CSA, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, TUV, UL, UL 508C
Torque Application: Constant Torque, Variable Torque
Color: Black/Green
Output Current - Maximum: 88 A
Style: Chassis
Accepts External Control Inputs: Yes
Input Frequency: 60/50 Hz
Application: Industrial
Includes EMI Filter: Yes
Number of Outputs - Digital: 2
Dynamic Braking: No
Product Type: Variable Frequency Drive
Control Type: PLC
Output Power - Kilowatt - Maximum: 37 kW, 45 kW
Protection: Circuit Breaker, Drive Thermal Overload, Overspeed, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Safe Torque Off, Undervoltage
Input Phase: Three
Series: Altivar Process ATV900
Includes Ethernet Port: Yes
Item: ATV930
Input Type: Analog, Digital
Includes Brake Chopper: Yes
Start/Stop Control: Programmable

Description

ATV930, Input Voltage 380-480V AC, Input Frequency 60/50 Hz, Output Voltage 480V AC
