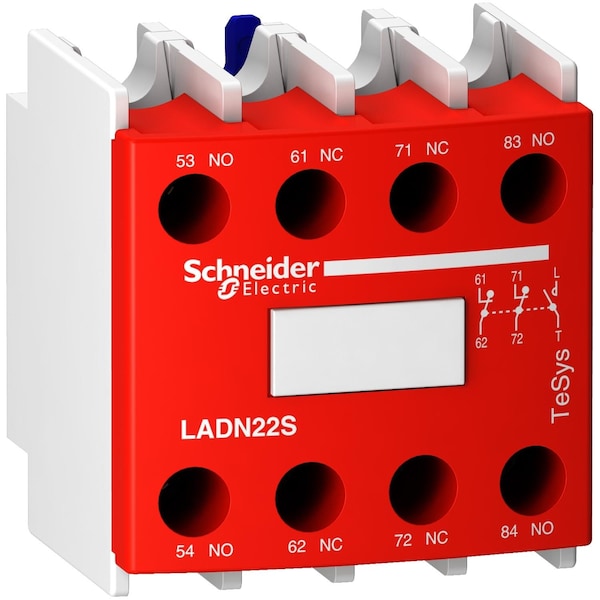

- Item
- Auxiliary contact block,TeSys D,2NO +
- Number of NO Aux. Contacts
- 2
- Number of NC Aux. Contacts
- 2
- Amps
- 10 A
- Mounting
- Front
- For Use With
- TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
- Voltage
- 690V AC
- Color
- Red
- Features
- Mercury Free, Toxic Heavy Metal Free
- Standards
- UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012, EN/IEC 60947-5-1, CB, CCC, EAC, UKCA
- Minimum Switching Voltage
- 17 V
- Range Compatibility
- TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
- Product Name
- TeSys Deca
- [Ie] Rated Operational Current
- 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
- Tightening Torque
- 1.7 N.m flat Ø 6 mm, 1.7 N.m Philips No 2, 1.7 N.m pozidriv No 2
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
- Mechanical Durability
- 30 Mcycles
- Permissible Short-Time Rating
- 100 A 60°C 1 s, 120 A 60°C 500 ms, 140 A 60°C 100 ms
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
- Range
- TeSys, TeSys Deca
- Pole Contact Composition
- 2 NO + 2 NC
- Protection Type
- gG fuse 10 A
- Protective Treatment
- TH IEC 60068
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Product or Component Type
- auxiliary contact block
- Operating Altitude
- 9842.52 ft (3000 m)
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
- Ip Degree of Protection
- IP20 conforming to IEC 60529
- Minimum Switching Current
- 5 mA
- Ambient Air Temperature For Operation
- -5-60°C
- Connections - Terminals
screw clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 2 1-4 mm²flexible without cable end, screw clamp terminals 1 1-4 mm²rigid without cable end, screw clamp terminals 2 1-4 mm²rigid without cable end
- Auxiliary Contacts Operation
- instantaneous
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60°C)
- Ambient Air Temperature For Storage
- -60-80°C
- Environmental Characteristic
- normal environment
- Insulation Resistance
- > 10 MOhm
- Device Short Name
- LADN
