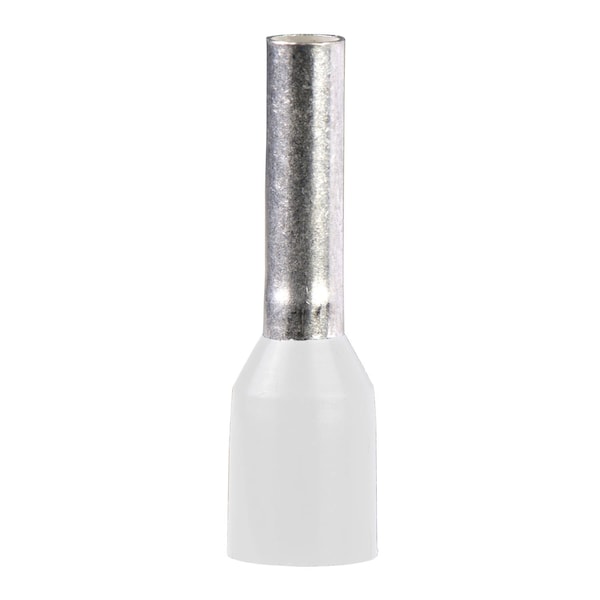

Cable ends, Linergy TR cable ends, single conductor, white, 0.5sq mm, medium size, 10 sets of 100
Mfr # DZ5CE005
Zoro # G700905053
product price: $0.20
/eaSold in multiples of 1000 for $200.00
Key Features
Wire Range
AWG 22
Max. Temp.
-20 to 105°C
Color
White
Standards
NF C 63-023; UL
Cable Size
0.5 sq. mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DZ5CE005
Zoro #
G700905053
UPC #
-
Country of Origin
Germany
Dimensions
Cable Size
0.5 sq. mm
Tube Size
1.3 mm
Length (In.)
14 mm
Cable End Size
medium
Bezel Size
Ø 3.1 mm
Tube Length
8 mm
Details
Item
CABLE ENDS
Wire Range
AWG 22
Max. Temp.
-20 to 105°C
Color
White
Standards
NF C 63-023; UL
Cable Cross Section
0.5-0.5 mm²
Tube Material
Copper ISO 1337
Additional Information
without marker tag holder
Product or Component Type
cable end
Pvc Free
Yes
Cable End Type
single conductor
Number of Cables
1
Ambient Air Temperature For Operation
-20-105°C
Type of Packing
string of bags
Range of Product
Linergy
Bezel Material
halogen-free plastic
Description
Linergy cable end insulated without marker tag holder. It applied to single conductor with 0.5 mm2 cable cross section. It has white surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
