- MFR #
- XB6CW4B2B
- Zoro #
- G3304512
- UPC #
- -
- Country of Origin
- Mexico
- Item

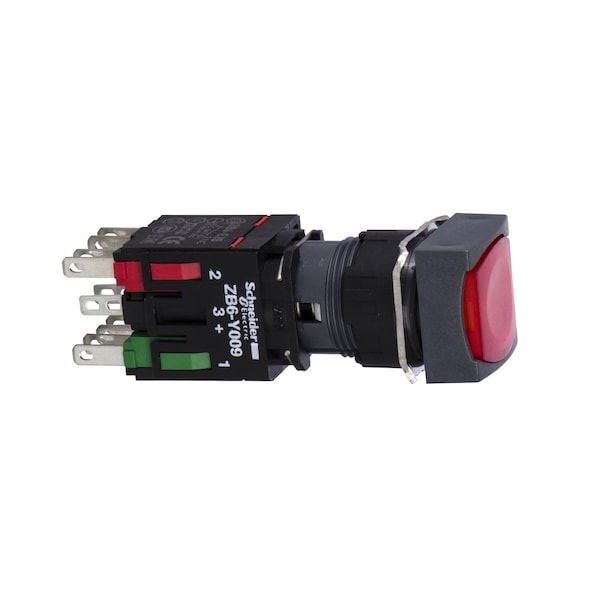

- Illuminated Push Button
- Push Button Style
- Flush
- Action
- Momentary Pull / Maintained Push
- Operator Illumination
- Illuminated
- Head Color
- Red
- Head Material
- Plastic
- Terminal Connection
- Faston
- Standards
- EN/IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, EN/IEC 60947-5-5, JIS C 852, EN/IEC 60947-1
- Bezel Material
- plastic
- [Ie] Rated Operational Current
- 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Electromagnetic Emission
- class B IEC 55011
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Type Of Operator
- spring return
- Supply Voltage Limits
- 6-30 V AC/DC
- Vibration Resistance
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment
- TC
- Contacts Type And Composition
- 1 NC
- Ip Degree Of Protection
- IP65 IEC 60529
- Electrical Durability
- 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Ambient Air Temperature For Storage
- -40-70°C
- Operating Travel
- 2 mm NC changing electrical state) || 3.5 mm total travel)
- Product Certifications
- CSA || GOST || UL || CCC
- Product Or Component Type
- complete illuminated push-button
- Contacts Material
- silver alloy (Ag/Ni)
- [Us] Rated Supply Voltage
- 12 to 24 V AC/DC
- Electrical Reliability
- Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
- Operator Profile
- red flush, unmarked
- Ambient Air Temperature For Operation
- -25-70°C
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Surge Withstand
- 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
- Current Consumption
- 15 mA
- Shape Of Signaling Unit Head
- square
- Signalling Type
- steady
- Bulb Base
- integral LED
- Operating Force
- 4.5 N NC changing electrical state
- Electrical Shock Protection Class
- class II IEC 61140
- Contact Operation
- slow-break
- Light Source
- LED
- Nema Degree Of Protection
- NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Operating Position
- any position
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Device Short Name
- XB6
- Connections - Terminals
- Faston connectors 2.8 x 0.5 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Terminals Description Iso N°1
- (21-22)NC
- Range of Product
- Harmony XB6
