- Item

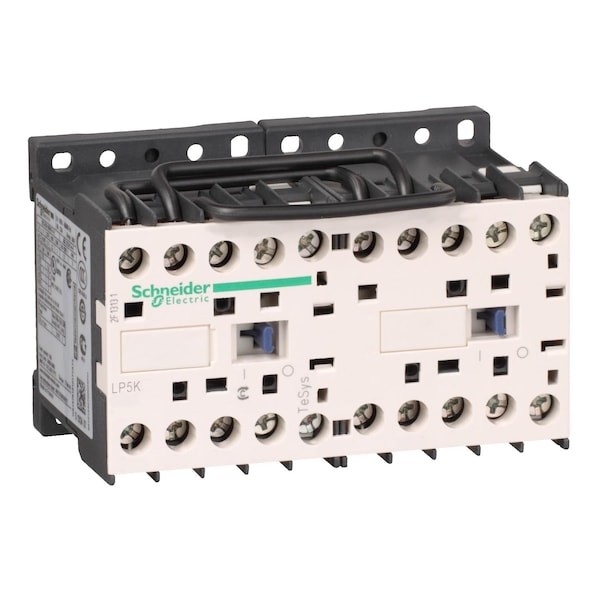

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NO
- Coil Voltage
- 24V DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 12 A
- Full Load Amps-Resistive
- 20 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 1
- Standards
- EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1
- Series
- LP5K, TeSys
- Application
- Motor Control, Resistive Load
- Features
- Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar
- Mechanical Robustness
shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6, shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-5-1, signalling circuit 600 V UL 508, power circuit 600 V CSA C22.2 No 14, signalling circuit 600 V CSA C22.2 No 14
- Operating Time
- 10...20 ms coil de-energisation and NO opening, 30...40 ms coil energisation and NO closing
- Ambient Air Temperature For Storage
- -50-80°C
- Contactor Application
- motor control, resistive load
- Pole Contact Composition
- 3 NO
- Mechanical Durability
- 5 Mcycles
- Utilisation Category
- AC-4, AC-1, AC-3, AC-3e
- Electrical Durability
- 1.3 Mcycles 12 A AC-3 <= 440 V, 1.3 Mcycles 12 A AC-3e <= 440 V, 0.3 Mcycles 20 A AC-1 <= 690 V, 0.02 Mcycles 72 A AC-4 <= 440 V
- Maximum Operating Rate
- 3600 cyc/h
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Ambient Air Temperature For Operation
- -25-50°C
- Device Short Name
- LP5K
- Tightening Torque
- 0.8-1.3 N.m screw clamp terminals Philips No 2, 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m screw clamp terminals pozidriv No 2
- [Icw] Rated Short-Time Withstand Current
115 A 50°C - 1 s for power circuit, 105 A 50°C - 5 s for power circuit, 100 A 50°C - 10 s for power circuit, 75 A 50°C - 30 s for power circuit, 55 A 50°C - 1 min for power circuit, 50 A 50°C - 3 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit, 25 A 50°C - >= 15 min for power circuit
- Product Name
- TeSys K
- Non Overlap Distance
- 0.5 mm
- Protective Treatment
- TC IEC 60068, TC DIN 50016
- Control Circuit Voltage Limits
- operational: 0.7...1.30 Uc (at <50°C), drop-out: 0.1...0.7 Uc (at <50°C)
- Rated Breaking Capacity
- 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947
- Device Presentation
- preassembled with reversing power busbar
- Heat Dissipation
- 1.8-1.8 W
- Device Application
- control
- Overvoltage Category
- III
- Interlocking Type
- mechanical
- Auxiliary Contacts Type
- instantaneous 1 NO
- Control Circuit Type
- DC low consumption
- Watts Loss
- 1.8W
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Fire Rating
- UL 94 V1, NF F 16-101, NF F 16-102
- Rated Insulation Volts
- 600/690V
- Max. Operating Watts
- 4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz), 3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 415VAC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz)
- Environmental Attributes
- Mercury Free, Toxic Heavy Metal Free
- Rated Making Capacity
- 110 A (AC Signalling Circuit), 144 A (AC Power Circuit)
- Impulse Withstand Voltage
- 8 kV
- Operating Speed
- 3600 cycles per hr
- Switching Current
- 5 mA (Signalling Circuit)
- Shock Resistance
- 10 G for 11 ms (on Y axis with Contactor Closed), 15 G for 11 ms (on X and Z axis with Contactor Closed), 6 G for 11 ms (on Y axis with Contactor Open), 10 G for 11 ms (on X and Z axis with Contactor Open)
- Net Weight
- 0.49 kg
- Fuse Amps
- 25 A (Power Circuit), 10 A (Signalling Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- IP Rating
- IP20
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Rated Short-Time Withstand Current
115 A (at 50 Degrees C for 1 s Power Circuit), 105 A (at 50 Degrees C for 5 s Power Circuit), 100 A (at 50 Degrees C for 10 s Power Circuit), 75 A (at 50 Degrees C for 30 s Power Circuit), 55 A (at 50 Degrees C for 1 min Power Circuit), 50 A (at 50 Degrees C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 25 A (at 50??C for 15 min Power Circuit)
- Impedance
- 3 mOhm
- Full Load Current - Inductive
- 12 A
- Full Load Current - Resistive
- 20 A
- Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz, signalling circuit <= 690 V AC 50/60 Hz
- Conventional Free Air Thermal Current
- 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
- Maximum Voltage Rating
- 690V AC
- Mounting Style
- Plate, Rail
- Hold-In Power Consumption in W
- 1.8-1.8 W 20°C
- Inrush Power in W
- 1.8-1.8 W 20°C)
- Rated Operational Current
- 20 A (at <50°C) at <= 440 V AC AC-1 for power circuit, 16 A (at <70°C) at 690 V AC AC-1 for power circuit, 12 A at <= 440 V AC AC-3 for power circuit, 12 A at <= 440 V AC AC-3e for power circuit
