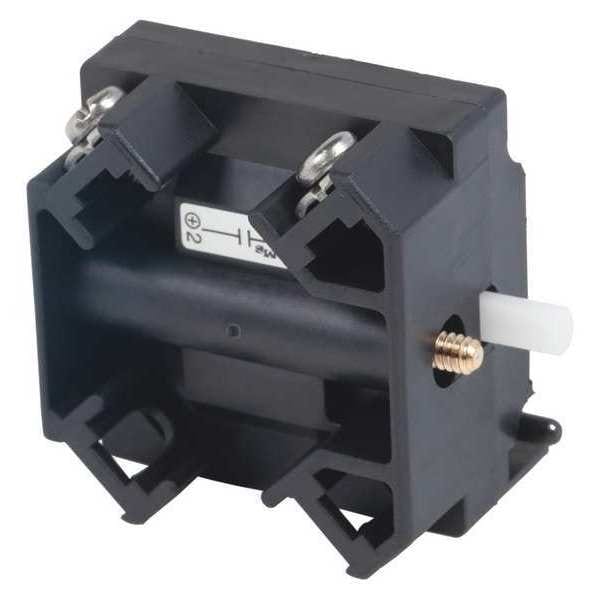

Schneider Electric Contact Block, 1NO, 30mm 9001KA42 - main

Contact Block, 1NO, 30mm

  • Mfr # 9001KA42

  • Zoro # G7624102

product price: $47.49
/ea

Key Features

Contact Rating
0.5A @ 120V AC
Size
30 mm
Action
Momentary
Application
Low Energy Circuits
Contact Form
1NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KA42
Zoro #
G7624102
UPC #
785901498551
Country of Origin
Japan

Dimensions

Size
30 mm
Manufacturer Warranty Length
18 mo
Connection Size
30 mm

Details

Item
Contact Block
Contact Rating
0.5A @ 120V AC
Action
Momentary
Application
Low Energy Circuits
Contact Form
1NO
Color
Black
Standards
CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508
For Use With
Schneider 9001K Series 30mm Operators
NEMA Contact Rating Designation
A600/Q600
Terminal Connection
Screw/Clamp
Safety Rating
Class II Conforming to IEC 60536
[Ith] Conventional Free Air Thermal Current
10 A
Contacts Usage
hermetically sealed contacts
Rated Breaking Capacity
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Ambient Air Temperature For Operation
-25-70°C
Ambient Air Temperature For Storage
-40-70°C
Tightening Torque
0.8-0.8 N.m IEC 60947-1
Shock Resistance
50 gn IEC 60068-2-27
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Protective Treatment
TC
Product Or Component Type
contact block
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Product Certifications
NEMA || UL 508
Shape Of Screw Head
cross slotted
Electrical Shock Protection Class
class II IEC 61140
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
Positive Opening
with IEC 60947-5-2
Device Short Name
9001K
Connections - Terminals
screw-clamp terminals, screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² IEC 60947-1
Contacts Type And Composition
1 NO
[Us] Rated Supply Voltage
120 V
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Contact Operation
logic reed || hermetically sealed
Terminal Connection Type
Screw Clamp Terminals
Compatible Operator
Push Button
DC Contact Rating
0.1 A @ 30 V
Switch Action
Momentary/Logic Reed
Compatible with Series
9001K, 9001SK
AC Contact Rating
0.1 A @ 32 V

Description

Contact Block, Contact Form 1NO, Contact Rating 0.5A @ 120V AC, For Use With Schneider 9001K Series 30mm Operators, Action Momentary, 30 mm, Application Low Energy Circuits, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Screw/Clamp, Standards CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508, Safety Rating Class II Conforming to IEC 60536
