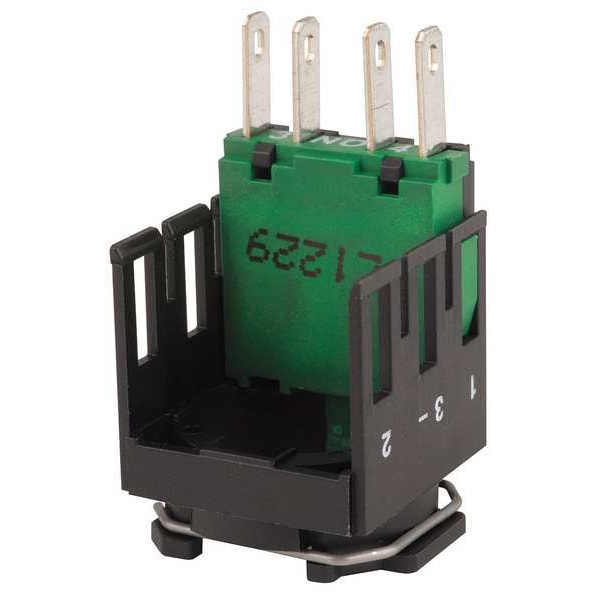

Schneider Electric Contact Block, 1NO Slow Break, 16mm ZB6Z1B - main

Contact Block, 1NO Slow Break, 16mm

  • Mfr # ZB6Z1B

  • Zoro # G2547885

product price: $9.19
/ea

Key Features

Contact Rating
6A @ 250V AC
Size
16 mm
Action
Momentary
Application
Operator
Contact Form
1NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB6Z1B
Zoro #
G2547885
UPC #
785901325703
Country of Origin
Spain

Dimensions

Size
16 mm
Cad Overall Width
18 mm
Cad Overall Depth
40 mm
Cad Overall Height
18 mm
Manufacturer Warranty Length
18 mo
Connection Size
16 mm

Details

Item
Contact Block
Contact Rating
6A @ 250V AC
Action
Momentary
Application
Operator
Contact Form
1NO
Color
Black
NEMA Contact Rating Designation
B300/R300
Terminal Connection
Slip On or Faston Connector or Quick Connector
For Use With
Schneider 16mm Push Buttons
Standards
CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, JIS C4520, JIS C852, UL 508
Short-Circuit Protection
6 A cartridge fuse gG EN/IEC 60947-5-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals
Faston connector || Faston connector 2.8 x 0.5 mm
[Us] Rated Supply Voltage
<= 250 V
Contacts Usage
standard
Product Or Component Type
complete body for push-buttons or selector switches
Electrical Reliability
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Operating Force
1.6 N NO changing electrical state
Terminals Description Iso N°1
(13-14)NO
Positive Opening
with EN/IEC 60947-5-1 appendix K
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TC
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300
Electrical Shock Protection Class
class II IEC 61140
Product Certifications
GOST || UL || CCC || CSA
Ambient Air Temperature For Storage
-40-70°C
Operating Travel
2 mm NO changing electrical state) || 4.3 mm total travel)
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Contacts Material
silver alloy (Ag/Ni)
Ip Degree Of Protection
IP65 IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Contacts Type And Composition
1 NO
Contact Operation
slow-break
Fixing Collar Material
plastic
Device Short Name
ZB6
Terminals Description Iso N°1
(13-14)NO
Includes Mounting Block
Mounting Block Included
Terminal Connection Type
Faster Connector
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Compatible with Series
ZB6
Compatible Operator
Push Button
Switch Action
Momentary

Description

Contact Block, Contact Form 1NO, Contact Rating 6A @ 250V AC, For Use With Schneider 16mm Push Buttons, Action Momentary, 16 mm, Application Operator, NEMA Contact Rating Designation B300/R300, Color Black, Terminal Connection Slip On or Faston Connector or Quick Connector, Standards CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, JIS C4520, JIS C852, UL 508
