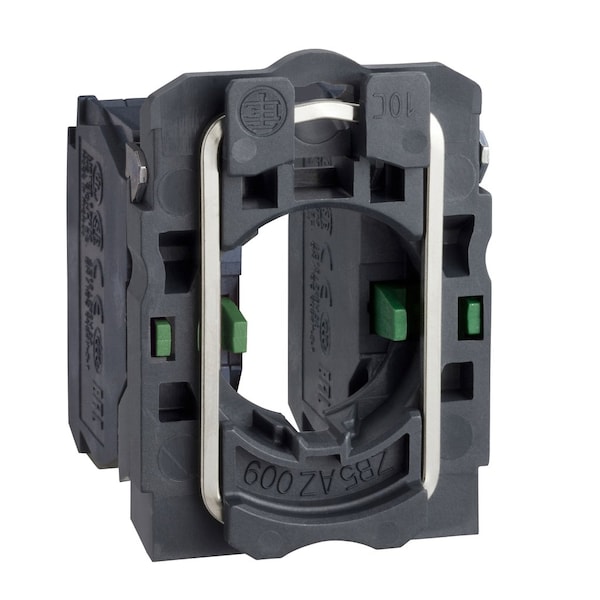

Contact Block, 2NO Slow Break, 22mm

Contact Block, 2NO Slow Break, 22mm

Mfr # ZB5AZ103
Zoro # G0991751

$35.99

Key Features

Color

Black

Standards

CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Contact Form

2NO

Application

Operator

NEMA Contact Rating Designation

A600/Q600

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

ZB5AZ103

Zoro #

G0991751

UPC #

785901370239

Country of Origin

France

Dimensions

Size

22 mm

Cad Overall Height

42 mm

Cad Overall Width

30 mm

Cad Overall Depth

32 mm

Manufacturer Warranty Length

18 mo

Connection Size

22 mm

Details

Item

Contact Block

Color

Black

Standards

CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Contact Form

2NO

Application

Operator

NEMA Contact Rating Designation

A600/Q600

Action

Momentary

Contact Rating

10A @ 600V AC

For Use With

Schneider ZB5 Plastic Operators

Terminal Connection

Screw/Clamp

Contact Block Type

single

Device Short Name

ZB5

Short-Circuit Protection

10 A cartridge fuse gG EN/IEC 60947-5-1

Tightening Torque

0.8-1.2 N.m EN 60947-1

Electrical Reliability

Î» < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Î» < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Protective Treatment

Shape Of Screw Head

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ã˜ 4 mm || slotted flat Ã˜ 5.5 mm

Ambient Air Temperature For Operation

-40-70Â°C

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

Operating Travel

2.6 mm NO changing electrical state) || 4.3 mm total travel)

Positive Opening

without

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

Product Certifications

GL || LROS (Lloyds register of shipping) || BV || UL || DNV || CSA

Contacts Type And Composition

2 NO

[Uimp] Rated Impulse Withstand Voltage

6 kV EN 60947-1

Terminals Description Iso N°1

(13-14)NO

[Ith] Conventional Free Air Thermal Current

10 A EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage

600 V 3)EN 60947-1

Contacts Usage

standard contacts

Fixing Collar Material

plastic

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Electrical Durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Ambient Air Temperature For Storage

-40-70Â°C

Contact Operation

slow-break

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN 60947-1

Device Presentation

basic sub-assemblies

Product Or Component Type

complete body/contact assembly

Contacts Material

silver alloy (Ag/Ni)

Mechanical Durability

10000000 cycles

Head Type

standard

Device Composition

fixing collar || body

Ip Degree Of Protection

IP20 IEC 60529

Terminals Description Iso NÂ°1

(13-14)NO

Compatible Operator

Push Button

Includes Mounting Block

Mounting Block Included

Terminal Connection Type

Screw Clamp Terminals

AC Contact Rating

1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V

Compatible with Series

ZB5

Switch Action

Momentary

DC Contact Rating

0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V

Description

Contact Block, Contact Form 2NO, Contact Rating 10A @ 600V AC, For Use With Schneider ZB5 Plastic Operators, Action Momentary, 22 mm, Application Operator, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Screw/Clamp, Standards CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
