- Item

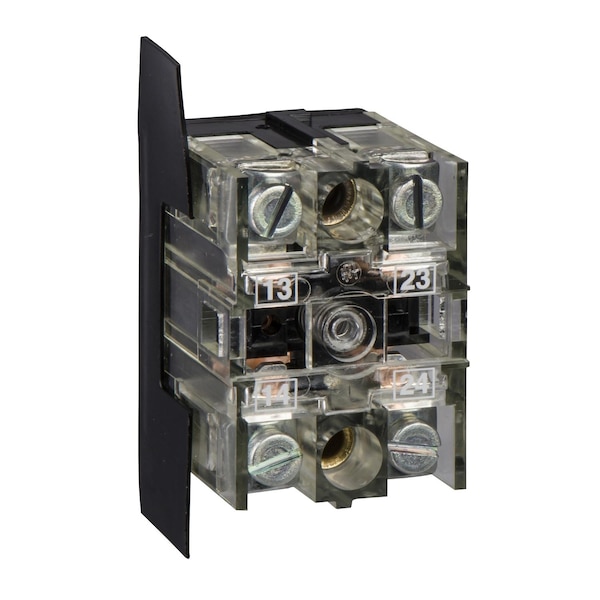

- Pendant Station Contact 240Vac 3A Xac
- Type of Operator
- spring return
- Standards
- IEC 60947-5-1, CSA C22.2 No 14, EN 60947-5-1
- Product or Component Type
- contact block
- Contact Code Designation
- A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Maximum Resistance Across Terminals
- 25 MOhm
- Mounting of Block
- front mounting
- Terminal Identifier
- (11-12)NC, (13-14)NO
- Contact Block Type
- single
- [Ui] Rated Insulation Voltage
- 400 V 3)IEC 60947-1
- Contacts Type And Composition
- 1 C/O + 1 NO
- [Ithe] Conventional Enclosed Thermal Current
- 10A
- Mechanical Interlocking
- without mechanical interlock
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Shock Resistance
- 100 gn IEC 60068-2-27
- Contact Operation
- slow-break, staggered
- Connections - Terminals
- screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
- Terminals Description Iso N°1
- (13-14-31-32)OF, (23-24)NO_CL
- Range of Product
- Harmony XAC
- Ambient Air Temperature For Storage
- -40-70°C
- Mechanical Durability
- 1000000 cycles
- Product Compatibility
- XACB, XACM
- Rated Operational Power In W
- 31 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 35 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Rated Operational Power In Va
- 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive, 210 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive, 640 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive, 680 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive
- Electrical Circuit Type
- control circuit
- Ambient Air Temperature For Operation
- -25-70°C
- Component Name
- XENB
- Contact Block Application
- 2-speed
- Mounting Of Block
- front mounting
- Type Of Operator
- spring return
- Product Or Component Type
- contact block
- Terminals Description ISO n°1
- (13-14-31-32)OF; (23-24)NO_CL
- Conventional Enclosed Thermal Current
- 10 A
