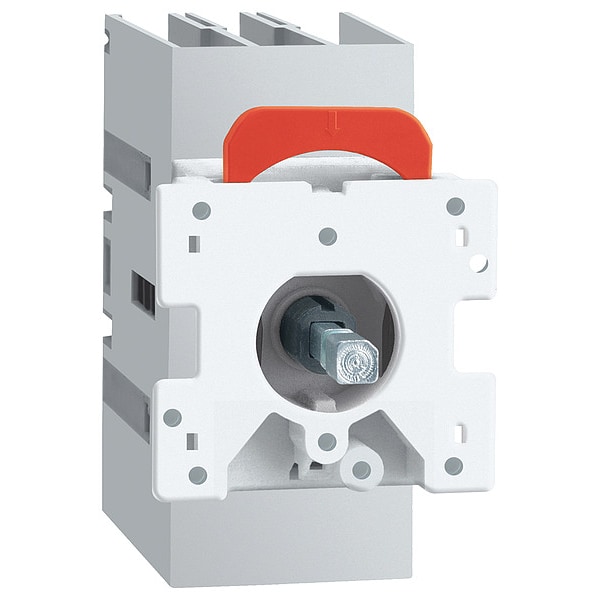

Disconnect Switch, 40 A, 480V AC

  • Mfr # VLS3P040D1
  • Zoro # G3546366
product price:
$
88.79
/ea

Key Features

Description/Special Features
Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free
Voltage
480V AC
Number of Poles
3
Includes
Padlock
For Use With
VLS1GD1, VLS1ND1, VLSC3P1, VLSH2H5B, VLSH2H5R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VLS3P040D1
Zoro #
G3546366
UPC #
785901561279
Country of Origin
Korea, Republic of

Dimensions

Depth
3 in
Width
1 3/4 in
Height
2 3/4 in

Details

Item
Disconnect Switch
Description/Special Features
Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free
Voltage
480V AC
Number of Poles
3
Includes
Padlock
For Use With
VLS1GD1, VLS1ND1, VLSC3P1, VLSH2H5B, VLSH2H5R
Phase
Three
Max. Voltage
8 kV
Protection Method
Non-Fusible
Mounting Style
Door
Standards
UL 508CSA C22.2 No 14IEC 60947-3
Current Rating
40 A
Contacts Type And Composition
3 NO
Electrical Durability
100000 cycles AC-21A
Connections - Terminals
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
Mounting Support
door
Network Frequency
50/60 Hz
Tightening Torque
power circuit 1.8-2 N.m screw clamp terminals
Color
Gray
[Icw] Rated Short-Time Withstand Current
800 A 690 V 1 s
Making Capacity
120 A 690 V AC-22A || 400 A 690 V AC-23A || 60 A 690 V AC-21A
Product Name
TeSys VARIO LS
[Uimp] Rated Impulse Withstand Voltage
8 kV
Ambient Air Temperature For Operation
-25-55°C
Intermittent Duty Class
class 120 - 60 %
[Ie] Rated Operational Current
40 A Ue: 600 V UL 508 || 40 A AC-21A Ue: 400 V || 40 A AC-21A Ue: 500 V || 40 A AC-21A Ue: 690 V || 40 A AC-22A Ue: 400 V || 40 A AC-22A Ue: 500 V || 40 A AC-22A Ue: 690 V || 40 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V
Product Or Component Type
switch body
Range
TeSys
Poles Description
3P
Rated Conditional Short-Circuit Current
50 kA 400 V 40 A gG
[Icm] Rated Short-Circuit Making Capacity
1128 A 690 V
Network Type
AC
Mechanical Robustness
vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Mechanical Durability
100000 cycles
Performance Level
high performance
Device Short Name
VLS3P
Ip Degree Of Protection
IP20 conforming to IEC 60529
[Ue] Rated Operational Voltage
600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
Rated Operational Power In W
18.5 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)
Breaking Capacity
60 A 690 V AC-21A) || 120 A 690 V AC-22A) || 320 A 690 V AC-23A)
Product Certifications
cULus || GL
[Ithe] Conventional Enclosed Thermal Current
40 A
Fire Resistance
960°C IEC 60695-2-11
[Ith] Conventional Free Air Thermal Current
40 A 55°C

Description

Disconnect Switch, Current Rating 40 A, Depth 3 in, For Fuse Class Not Applicable, Height 2 3/4 in, Includes Padlock, Mounting Style Door, Number of Poles 3, Phase Three, Protection Method Non-Fusible
