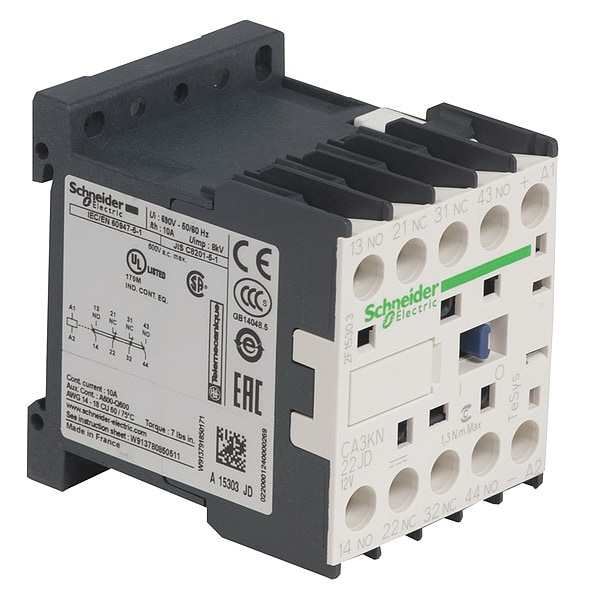

Schneider Electric Control Relay 12VDC 10Amp Iec +Options CA3KN22JD - main

Control Relay 12VDC 10Amp Iec +Options

  • Mfr # CA3KN22JD

  • Zoro # G0570057

product price: $63.29
/ea

Key Features

Auxiliary Contact Form
2NC/2NO
Maximum Voltage Rating
690V AC
Standards
EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Width
45 mm
Depth
57 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CA3KN22JD
Zoro #
G0570057
UPC #
785901065012
Country of Origin
France

Dimensions

Width
45 mm
Depth
57 mm
Height
58 mm

Details

Item
Control Relay
Auxiliary Contact Form
2NC/2NO
Maximum Voltage Rating
690V AC
Standards
EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Minimum Switching Current
5 mA
Operating Time
10 ms coil de-energisation and NO opening || 30 to 40 ms coil energisation and NO closing || 15 ms coil de-energisation and NC closing || 25 to 35 ms coil energisation and NC opening
Heat Dissipation
3-3 W
Immunity To Microbreaks
2 ms
Device Short Name
CA3K
Ambient Air Temperature For Operation
-25-50°C
Pole Contact Composition
2 NO + 2 NC
Product Or Component Type
control relay
Product Name
TeSys CAK
Product Certifications
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
[Uc] Control Circuit Voltage
12 V DC
Control Circuit Type
DC standard
Mechanical Robustness
vibrations contactor open2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Inrush Power In W
3-3 W 20°C)
Operating Altitude
6561.68 ft (2000 m) without derating
Ambient Air Temperature For Storage
-50-80°C
Range
TeSys
Associated Fuse Rating
10 A gG IEC 60947 || 10 A gG VDE 0660
Utilisation Category
DC-13 || AC-15
Tightening Torque
1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
Maximum Operating Rate
10000 cyc/h
Flame Retardance
V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
Connections - Terminals
screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end
Mechanical Durability
20 Mcycles
Contactor Application
control circuit
Non Overlap Distance
0.5 mm
Protective Treatment
TC IEC 60068
Minimum Switching Voltage
17 V
Hold-In Power Consumption In W
3-3 W 20°C
Irms Rated Making Capacity
110 A IEC 60947
Control Circuit Voltage Limits
operational 0.8 to 1.15 Uc 50°C) || drop-out 0.1 to 0.75 Uc 50°C)
Insulation Resistance
> 10 MOhm
Rated Insulation Voltage
690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
IP Rating
IP2X
Rated Operational Voltage
<= 690 V <= 400 Hz
Mounting Style
rail || plate
Conventional Free Air Thermal Current
10 A 50°C

Description

Control Relay 12VDC 10Amp Iec +Options
