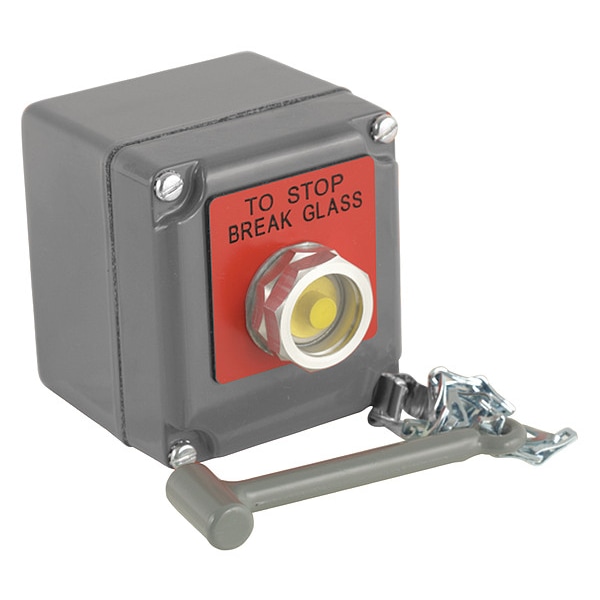

Schneider Electric Control Station, Dead-End, Button, Yellow 9001KYK116 - main

Control Station, Dead-End, Button, Yellow

  • Mfr # 9001KYK116

  • Zoro # G3456592

product price: $300.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Number of Gangs
1
Legend
To Stop Break Glass
Number of Pilot Lights
0
Type of Operator
Push Button
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KYK116
Zoro #
G3456592
UPC #
785901039839
Country of Origin
Mexico

Dimensions

Size
30 mm
Overall Height
4 in
Manufacturer Warranty Length
18 mo
Overall Width
3.62 in
Panel Cutout Diameter
30 mm
Hub Size - Maximum
3/4 in
Overall Depth
3.53 in

Details

Item
Control Station
Contact Form
1NO/1NC
Number of Gangs
1
Legend
To Stop Break Glass
Number of Pilot Lights
0
Type of Operator
Push Button
Number of Operators
1
Series
9001K
NEMA Rating
13, 3, 4
Hub Style
Dead-End
For Use With
indoor/outdoor
Standards
CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, UL 508
Action
Momentary
Lamp Module Voltage
Module Not Included
Terminal Connection
screw-clamp terminals
Number of Speeds
1
Enclosure Material
Zinc
Enclosure Color
Gray
Mounting
Wall
Operator Color
Yellow
Mounting Style
Surface
IP Rating
IP66
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Product Type
Control Station
Operator Configuration
Push Button
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
13, 3, 4
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Class II, Div 2, Group G, Class III, Div 1 and 2
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 30 mm, Legend To Stop Break Glass, Type of Operator Push Button, Action Momentary, Operator Color Yellow, Contact Form 1NO/1NC, NEMA Rating 13, 3, 4, IP Rating IP66, Mounting Wall, Enclosure Material Zinc, Enclosure Color Gray, Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, UL 508, Lamp Module Voltage Module Not Included
