Shop SCHNEIDER ELECTRIC

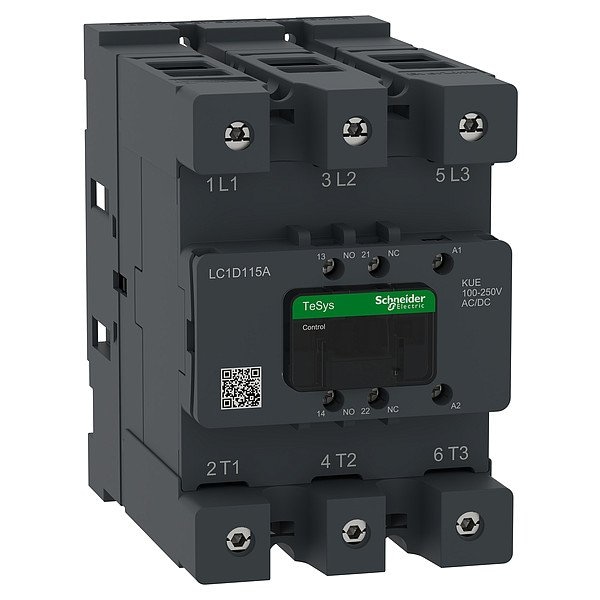

CTR Deca 115A 3P 100-250V ACDC EvLk

  • Mfr # LC1D115AKUE

  • Zoro # G022823349

product price:
$
708.99
/ea
Free Shipping & Returns

Key Features

Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Full Load Current - Resistive
Not Rated
Minimum Operating Temperature
-40 Degrees F
Frequency
50/60 Hz
Mechanical Operating Durability
8,000,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D115AKUE
Zoro #
G022823349
UPC #
-
Country of Origin
Multiple
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Full Load Current - Resistive
Not Rated
Minimum Operating Temperature
-40 Degrees F
Frequency
50/60 Hz
Mechanical Operating Durability
8,000,000
Coil Voltage
100-250V AC/DC
Contactor Style
IEC
Item
IEC Contactor
Number of Auxillary Contacts
2
Phase
Three
Electrical Operating Durability
1,000,000, 500,000
Terminal Connection Type
Screw Terminals
Includes Auxiliary Contacts
Yes
Series
Tesys Deca
Maximum Operating Temperature
140 Degrees F
Number of Poles
3
Full Load Current - Inductive
115 A
Auxiliary Contact Form
1NO/1NC
Mounting Style
Plate
Reversing Capability
Non-Reversing
Number of Normally Open Main Contacts
3
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Maximum Voltage Rating
440V
NEMA Enclosure Rating
No Enclosure
Embedded Surge Suppressor
Yes

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 100-250V AC/DC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 3.82 in, Terminal Connection Type Screw Terminals, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three
